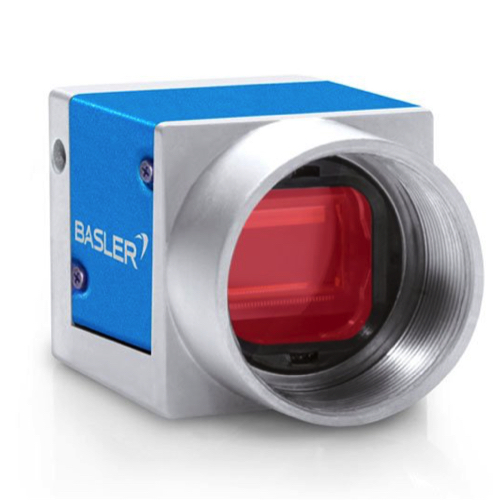

Basler acA2500-20gcMED Area Scan Camera (2592 x 2048 px; onsemi PYTHON NOIP1SE5000A)

Resolution (H x V Pixels): 2592 x 2048

Resolution: 5.3 MP

Sensor Type: onsemi PYTHON NOIP1SE5000A Progressive scan CMOS

Sensor Format: 1 inch

Effective Sensor Diagonal: 15.9 mm

Pixel Size (H x V): 4.8 x 4.8 μm

Frame Rate (at Default Settings): 21 fps (at fast sensor readout mode), 20 fps (at normal sensor readout mode)

Mono / Color: Color

Image Data Interface: Fast Ethernet (100 Mbit/s) Gigabit Ethernet (1000 Mbit/s)

Synchronization: Via hardware trigger, Via software trigger, Via free run

Exposure Time Control: Via hardware trigger, Programmable via the camera API

Camera Power Requirements: ≈3.9 W (typical), ≈4.1 W (max.) when using Power over Ethernet/ ≈3.4 W (typical), ≈3.6 W (max.) @ 12–24 VDC when supplied via I/O connector

Lens Mount: C-mount

Size (ø x L): 42.0 x 29 x 29 mm (without lens mount or connectors)/ 60.3 x 29 x 29 mm (with lens mount and connectors)

Weight: <90 g
