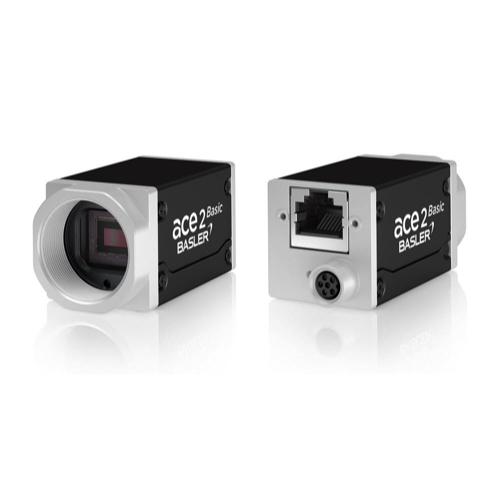

Basler a2A4096-44g5cBAS Area Scan Camera (5GigE; Color; 12.3 MP)

Resolution (H x V Pixels): 4128 x 3008 (full resolution) / 4096 x 3000 (default resolution)

Resolution: 12 MP

Sensor Type: Sony IMX545-AAQJ-C / Progressive scan CMOS / Global shutter

Sensor Format: 1/1.1 inch

Effective Sensor Diagonal: 14 mm

Pixel Size (H x V): 2.74 x 2.74 µm

Frame Rate (at Default Settings): 43.6 fps / 47 fps (with Bandwidth Reserve mode set to Performance)

Mono / Color: Color

Image Data Interface: Fast Ethernet (100 Mbit/s) / Gigabit Ethernet (1000 Mbit/s)/ 2.5 Gigabit Ethernet (2500 Mbit/s) / 5 Gigabit Ethernet (5000 Mbit/s)

Synchronization: Via hardware trigger / Via software trigger / Via free run

Exposure Time Control: Via hardware trigger / Programmable via the camera API

Camera Power Requirements: ≈5.8 W (typical) @ 12–24 VDC (supplied via I/O connector)

I/O Lines: 1 opto-coupled input line / 2 general purpose I/O (GPIO) lines

Lens Mount: C-mount

Size (L x W x H): 48.9 x 29 x 29 mm (without lens mount or connectors) / 62.2 x 29 x 29 mm (with lens mount and connectors)

Weight: <105 g

The Basler a2A4096-44g5cBAS 5GigE camera with the Sony IMX545 CMOS sensor delivers 44 frames per second at 12.3 MP resolution.
