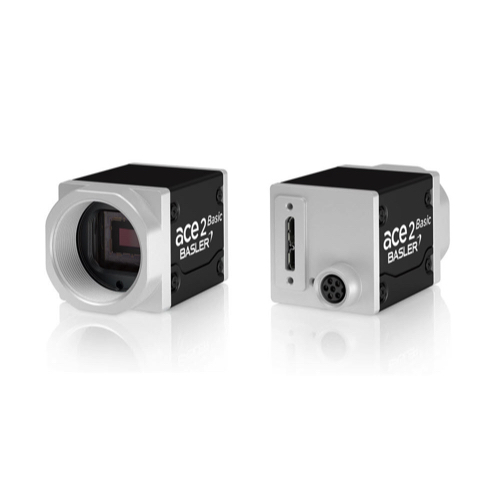

Basler a2A4096-30ucBAS - IMX545 Area Scan Camera (12 MP; Sony IMX545-AAQJ-C; Color)

Resolution (H x V Pixels): 4128 x 3008 (full resolution) / 4096 x 3000 (default resolution)

Resolution: 12 MP

Sensor Type: Sony IMX545-AAQJ-C / Progressive scan CMOS / Global shutter

Sensor Format: 1/1.1 inch

Effective Sensor Diagonal: 14 mm

Pixel Size (H x V): 2.74 x 2.74 µm

Frame Rate (at Default Settings): 29.3 fps / 31.7 fps (Device Link Throughput Limit mode set to Off)

Mono / Color: Color

Image Data Interface: USB 3.0, nominal max. 5 Gbit/s (SuperSpeed)

Synchronization: Via hardware trigger / Via software trigger / Via free run

Exposure Time Control: Via hardware trigger / Programmable via the camera API

Camera Power Requirements: ≈3.2 W (typical) @ 5 VDC

I/O Lines: 1 opto-coupled input line / 2 general purpose I/O (GPIO) lines

Lens Mount: C-mount

Size (L x W x H): 36.3 x 29 x 29 mm (without lens mount or connectors) / 48.1 x 29 x 29 mm (with lens mount and connectors)

Weight: <85 g

Conformity: CE (includes RoHS), EAC, UL Listed, FCC, KC, GenICam, USB3 Vision, IP30

Software: Basler pylon Camera Software Suite (version 6.0 or higher) Available for Windows, Linux x86, Linux ARM, macOS, and Android
