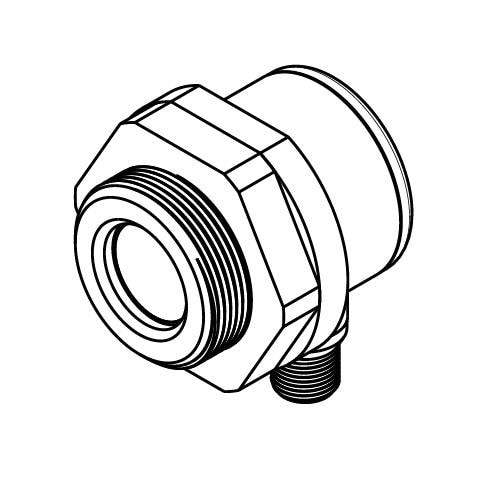

Banner Engineering T30UIPBQ-CRFV Photoelectric Sensors U-GAGE T30U Series: CRFV Coating W/Flange; Range: 300 mm - 1 m; Input: 12-24 V dc; Discrete PNP Output: Analog Output 4-20 mA; M12 Integral QD

Width: 48.3 mm

Height: 63.7 mm

Length: 47 mm

IP Rating: IP67

Sensing Distance: 300 mm to 1 m

Connection Method: 5-Pin M12

Output Configuration: PNP

Supply Voltage - Max: 24 VDC

Supply Voltage - Min: 12 VDC

Operating Supply Voltage: 12 VDC to 24 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
