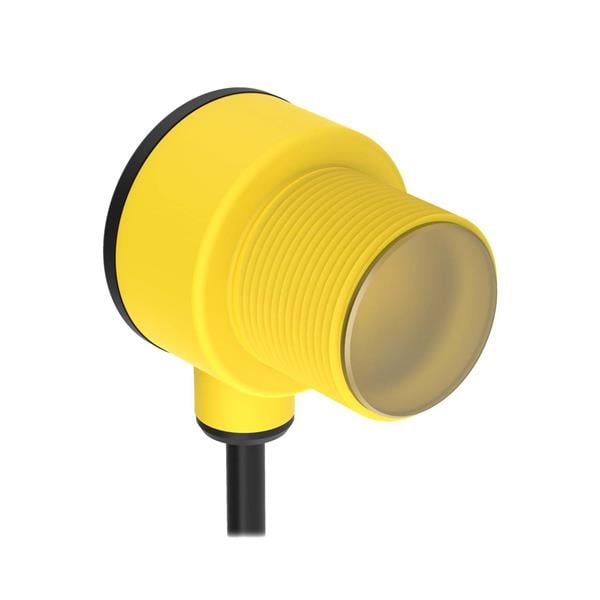

Banner Engineering T30R-4545-KIQP Photoelectric Sensors T30R R-GAGE Series Radar Sensor; Range 10 m; Input: 10-30 V dc; 4-20 mA Analog, 1 NPN/PNP Configurable with IO-Link; 150 mm (6 in) M12 Pigtail QD

Height: 63.8 mm

IP Rating: IP67

Sensing Distance: 300 mm to 10 m

Connection Method: 5-Pin M12

Output Configuration: NPN, PNP

Supply Voltage - Max: 30 VDC

Supply Voltage - Min: 10 VDC

Operating Supply Voltage: 10 VDC to 30 VDC

Maximum Operating Temperature: + 65 C

Minimum Operating Temperature: - 40 C
