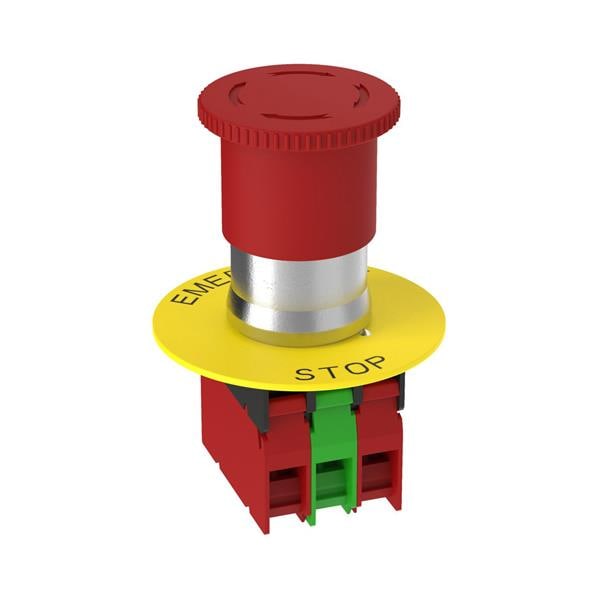

Banner Engineering SSA-EBM-12L Emergency Stop Switches 22 mm Metal E-Stop Button Kit; Kit Includes: 40 mm Actuator on Metal Shaft; Metal Mounting Adapter, 2 NC & 1 NO Contacts; E-Stop Legend

Life: 300000 Cycle

Height: 93 mm

Actuator: Round

IP Rating: IP65

Button Size: 40 mm

Unit Weight: 453.600 g

Contact Form: 3PST

Panel Cutout: 30.5 mm

Mounting Style: Panel Mount

Switch Function: ON - OFF, OFF - ON

Housing Material: Polycarbonate (PC)

Actuator Material: Thermoplastic (TP)

Termination Style: Screw

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 25 C
