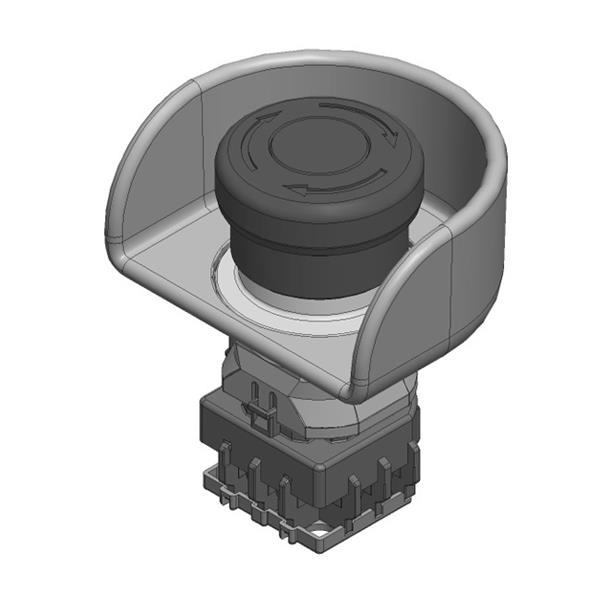

Banner Engineering SSA-EB1PS1-02-A01 Push Turn SSA-EB1 Panel-mount Emergency Stop Push Button; ISD Connect Compatible; 40 mm Actuator; Contacts: 2NC; M12 Integral QD Pigtail; 30 mm Mounting Hole; ESC-1-YW Button Shroud Included

Life: 250000 Cycle

Width: 37 mm

Height: 80.7 mm

Actuator: Round

IP Rating: IP65

Illuminated: Non-Illuminated

Contact Form: DPST

Panel Cutout: 30.5 mm

Current Rating: 5 A

Mounting Style: Panel Mount

Switch Function: ON - OFF

Housing Material: Polycarbonate (PC)

Actuator Material: Thermoplastic (TP)

Termination Style: Screw

Voltage Rating AC: 24 VAC

Voltage Rating DC: 24 VDC

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 25 C
