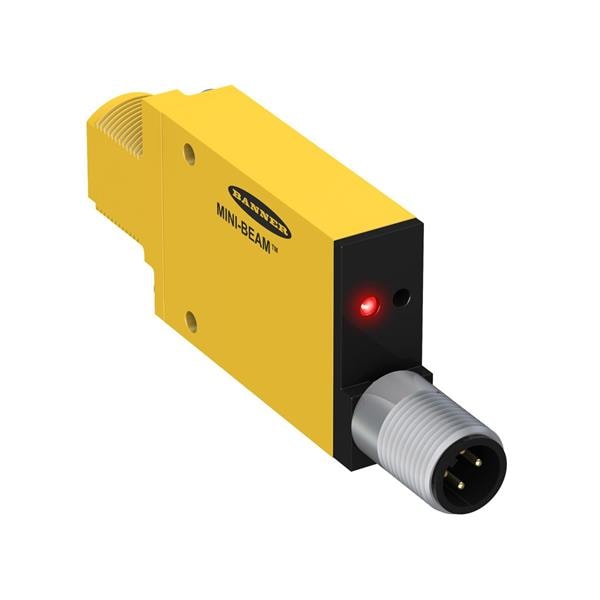

Banner Engineering SMA31ELQDP Photoelectric Sensors MINI-BEAM: Emitter; Range: 30 m; Input: 24-240 V ac; Output: Not Applicable; 150 mm (6 in) M12 Pigtail QD

Width: 12.2 mm

Height: 30.7 mm

Length: 86 mm

IP Rating: IP67

Unit Weight: 53.524 g

Light Source: Visible Red

Amplifier Type: Photoelectric

Sensing Method: Opposed Emitter

Sensing Distance: 30 m

Connection Method: 3-Pin Micro

Output Configuration: Solid-State Relay

Supply Voltage - Max: 250 VAC

Supply Voltage - Min: 24 VAC

Operating Supply Voltage: 24 VAC to 250 VAC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
