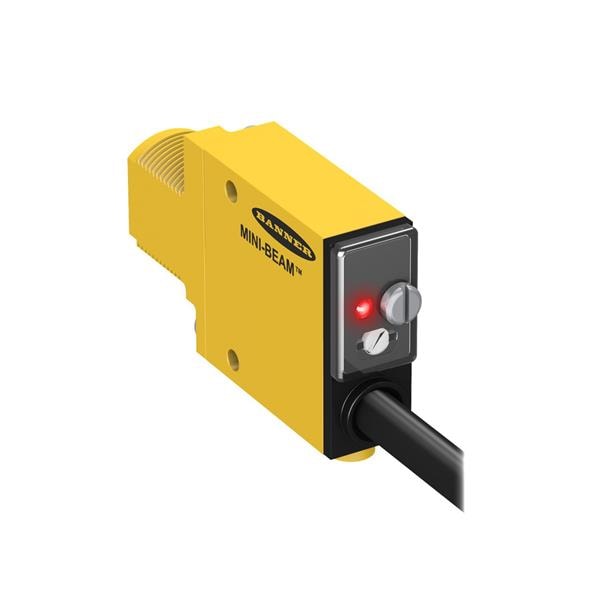

Banner Engineering SM31RLMHS Photoelectric Sensors MINI-BEAM: High Speed Receiver; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; MHS Response Time = 0.3 ms; 2 m (6.5 ft) Cable

Width: 12.2 mm

Height: 30.7 mm

Length: 53.3 mm

IP Rating: IP67

Unit Weight: 151.137 g

Light Source: Infrared LED

Amplifier Type: Photoelectric

Sensing Method: Opposed Receiver

Sensing Distance: 30 m

Connection Method: Cable

Output Configuration: NPN, PNP

Supply Voltage - Max: 30 VDC

Supply Voltage - Min: 10 VDC

Operating Supply Voltage: 10 VDC to 30 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
