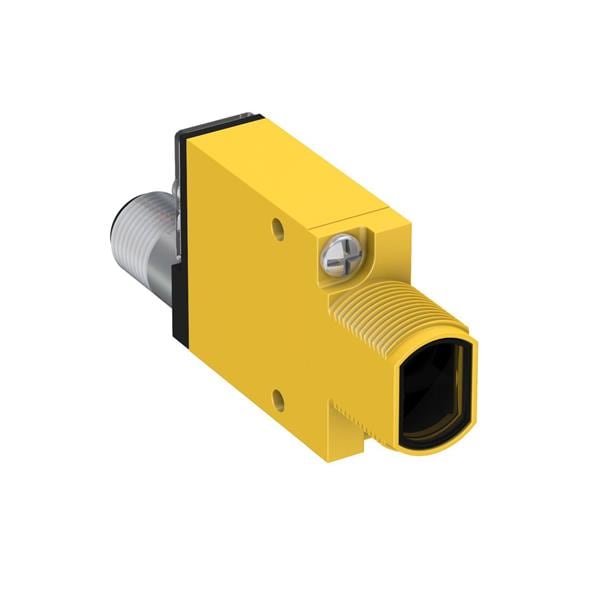

Banner Engineering SM312CVQDP Photoelectric Sensors MINI-BEAM: Visible Red 650 nm Convergent; Focal Point: 16 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 150 mm (6 in) M12 Pigtail QD

IP Rating: IP67

Unit Weight: 52.662 g

Light Source: Visible Red

Amplifier Type: Photoelectric

Sensing Method: Convergent

Sensing Distance: 16 mm

Connection Method: 4-Pin M12 Euro-Style

Output Configuration: NPN, PNP

Supply Voltage - Max: 30 VDC

Supply Voltage - Min: 10 VDC

Operating Supply Voltage: 10 VDC to 30 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
