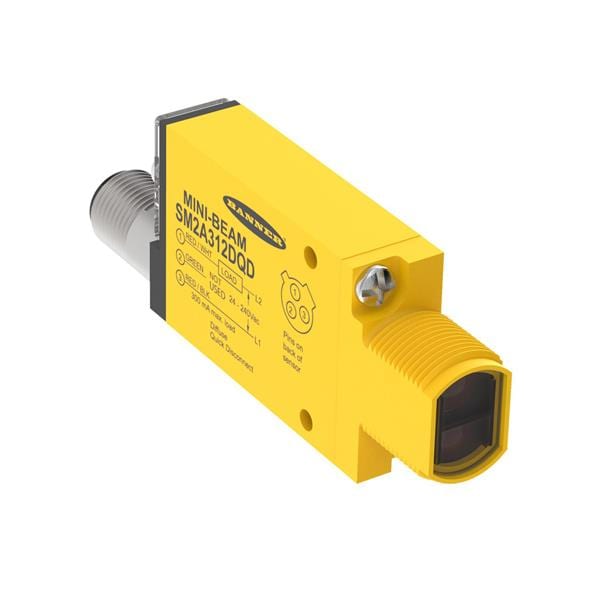

Banner Engineering SM2A312DQD Photoelectric Sensors MINI-BEAM: Diffuse; Range: 380 mm; Input: 24-240 V ac; Output: SPST Solid-state 2-Wire; 3-pin Micro Integral QD

Width: 12.2 mm

Height: 30.7 mm

Length: 86 mm

IP Rating: IP67

Unit Weight: 52.481 g

Light Source: Infrared

Amplifier Type: Photoelectric

Sensing Method: Diffuse Reflective

Sensing Distance: 380 mm

Connection Method: 3-Pin Micro

Output Configuration: Solid-State Relay

Supply Voltage - Max: 250 VAC

Supply Voltage - Min: 24 VAC

Operating Supply Voltage: 24 VAC to 250 VAC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
