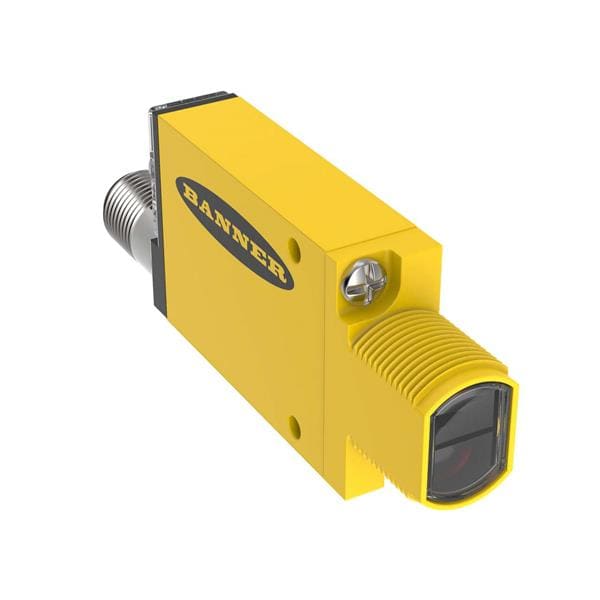

Banner Engineering SM2A312CV2QD Photoelectric Sensors MINI-BEAM: Visible Red 650 nm Convergent; Focal Point: 43 mm; Input: 24-240 V ac; Output: SPST Solid-state 2-Wire; 3-pin Micro Integral QD

Width: 12.2 mm

Height: 30.7 mm

Length: 86 mm

IP Rating: IP67

Light Source: Visible Red

Amplifier Type: Photoelectric

Sensing Method: Convergent

Sensing Distance: 43 mm

Connection Method: 3-Pin Micro

Output Configuration: Solid-State Relay

Supply Voltage - Max: 250 VAC

Supply Voltage - Min: 24 VAC

Operating Supply Voltage: 24 VAC to 250 VAC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
