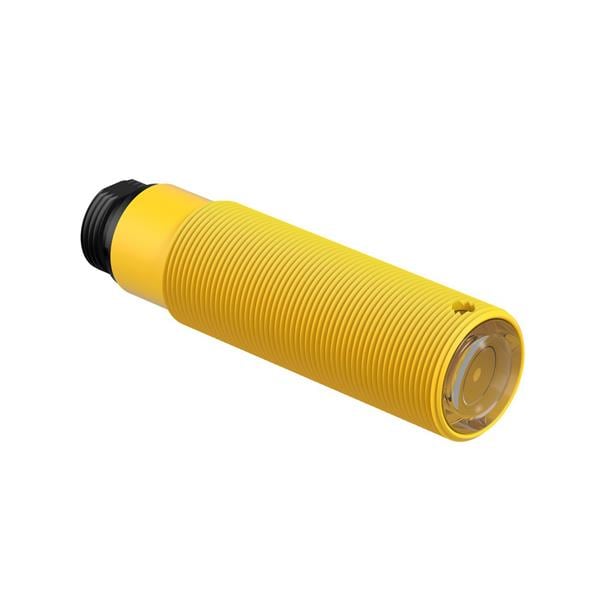

Banner Engineering SM2A30PRLNCQDB Photoelectric Sensors SM30 Series: Receiver - Frequency B PBT Polyester; Range: 150 m; Input: 24-240 V ac; Output: SPST Solid-State - Dark Operate; 3-pin Mini Integral QD

Height: 114 mm

IP Rating: IP67

Unit Weight: 152.498 g

Light Source: Infrared

Amplifier Type: Photoelectric

Sensing Method: Opposed Receiver

Sensing Distance: 150 m

Connection Method: 3-Pin Mini

Output Configuration: Solid-State Relay

Supply Voltage - Max: 240 VAC

Supply Voltage - Min: 24 VAC

Operating Supply Voltage: 24 VAC to 240 VAC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
