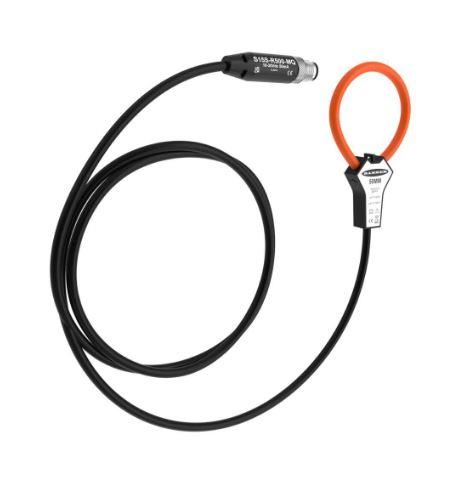

Banner Engineering S15S-R500-MQ Coil Current Sensor S15S Rogowski Coil Current Sensor; 500 A; 50 mm Coil; 10-30 V dc; Modbus RTU; RS-485 Interface; 4-pin Male M12 QD

Accuracy: 5 %

Core Size: 50 mm

IP Rating: IP65, IP67, IP68

Output Type: Analog

Sensor Type: Closed Loop

Current Rating: 500 A

Frequency Range: 1 Hz to 1 MHz

Supply Voltage - Max: 30 VDC

Supply Voltage - Min: 10 VDC

Operating Supply Voltage: 10 VDC to 30 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
