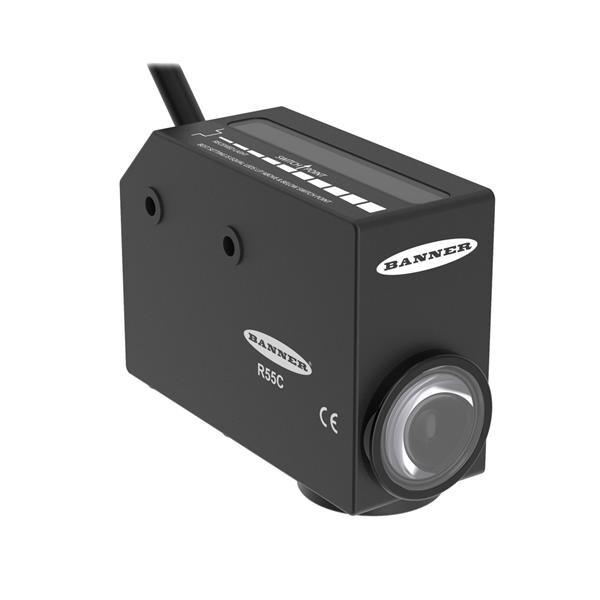

Banner Engineering R55CG1 Photoelectric Sensors R55 Color Mark: Convergent w/ Blue-Green LED; Parallel Focal Point: 10 mm; Input: 10-30 V dc; Outputs: Bipolar NPN/PNP; Analog 0-10 mA; 2 m (6.5 ft) cable

Width: 80 mm

Height: 55.5 mm

Length: 30 mm

IP Rating: IP67

Unit Weight: 471.736 g

Light Source: Visible Green LED

Sensing Method: Convergent

Sensing Distance: 10 mm

Connection Method: Cable

Output Configuration: Bipolar

Supply Voltage - Max: 30 VDC

Supply Voltage - Min: 10 VDC

Operating Supply Voltage: 10 VDC to 30 VDC

Maximum Operating Temperature: + 50 C

Minimum Operating Temperature: - 10 C
