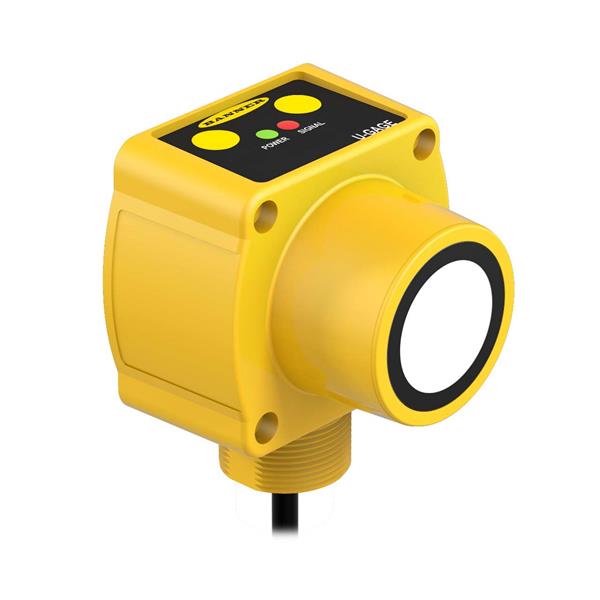

Banner Engineering QT50ULB W/30 Sensors with Analog Output QT50U Analog Series: Proximity Mode; Range: 200 mm - 8 m; Input: 10-30 V dc; Outputs: Analog: 0-10 V or 4-20 mA; 9 m (30 ft)

Width: 67.4 mm

Height: 66 mm

Unit Weight: 1.007 kg

Mounting Style: Flying Leads

Sensing Method: Ultrasonic

Sensing Distance: 200 mm to 8 m

Maximum Frequency: 75 KHz

Supply Voltage - Max: 30 VDC

Supply Voltage - Min: 10 VDC

Operating Supply Current: 100 mA

Operating Supply Voltage: 10 VDC to 30 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
