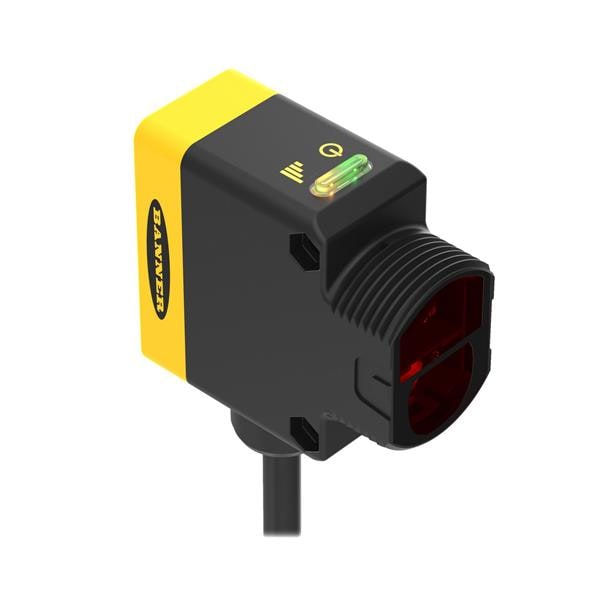

Banner Engineering QS30VR3RQPMA22 Photoelectric Sensors WORLD-BEAM QS30 Series: Universal Voltage - E; Range: 60 m; Input: 12-250 V dc or 24-250 V ac; Output: SPDT e/m Relay-250 V ac; COMMON HOT, 4-PIN M12, 6 in PIGTAIL PUR JACKET, PIN 2 OPEN

Width: 54.3 mm

Height: 44 mm

Length: 22 mm

IP Rating: IP67

Unit Weight: 101.332 g

Light Source: Infrared

Amplifier Type: Photoelectric

Sensing Method: Opposed Receiver

Sensing Distance: 60 m

Connection Method: 5-Pin Micro

Output Configuration: SPDT

Supply Voltage - Max: 250 VAC/DC

Supply Voltage - Min: 24 VAC, 12 VDC

Operating Supply Voltage: 24 VAC to 250 VAC, 12 VDC to 250 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
