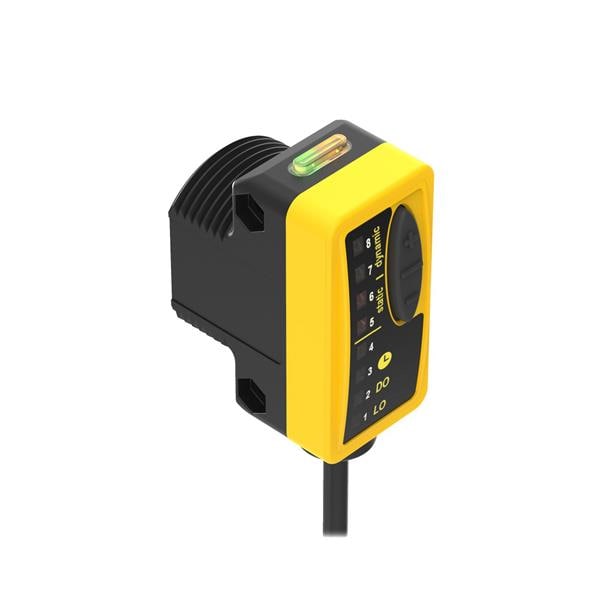

Banner Engineering QS30LDQP Photoelectric Sensors QS30LDQP CLASS 1 LASER DIFFUSE 5 WIRE
ModelQS30LDQP
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 35 mm
Height: 44 mm
Length: 22 mm
IP Rating: IP67
Unit Weight: 99.790 g
Light Source: Visible Red Laser
Amplifier Type: Laser
Sensing Method: Diffuse Reflective
Sensing Distance: 400 mm
Connection Method: 5-Pin M12 Euro-Style
Output Configuration: NPN, PNP
Supply Voltage - Max: 30 VDC
Supply Voltage - Min: 10 VDC
Operating Supply Voltage: 10 VDC to 30 VDC
Maximum Operating Temperature: + 50 C
Minimum Operating Temperature: - 10 C
