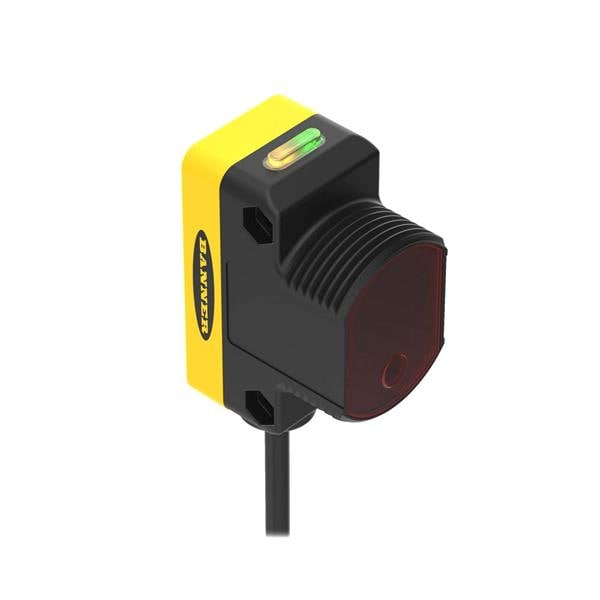

Banner Engineering QS30LD Photoelectric Sensors WORLD-BEAM QS30 Series: Laser Diffuse (Class 1); Range: 400 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 2 m (6.5 ft) Cable

Width: 32.5 mm

Height: 44 mm

Length: 22 mm

IP Rating: IP67

Light Source: Visible Red Laser

Amplifier Type: Laser

Sensing Method: Diffuse Reflective

Sensing Distance: 400 mm

Connection Method: Cable

Output Configuration: NPN, PNP

Supply Voltage - Max: 30 VDC

Supply Voltage - Min: 10 VDC

Operating Supply Voltage: 10 VDC to 30 VDC

Maximum Operating Temperature: + 50 C

Minimum Operating Temperature: - 10 C
