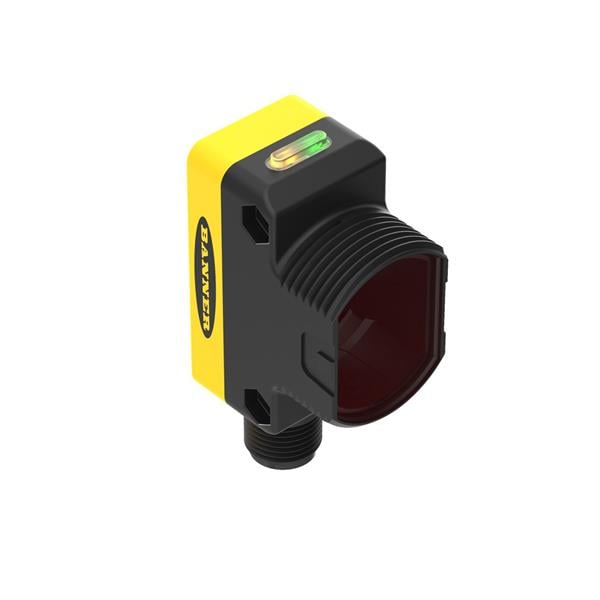

Banner Engineering QS30FF600QPMA16 Photoelectric Sensors WORLD-BEAM QS30: Fixed-Field; Range: 600 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 150 mm (6 in) M12 PUR Pigtail QD; designed for use SMBQS30YL bracket

Width: 35 mm

Height: 44 mm

Length: 22 mm

IP Rating: IP67

Unit Weight: 52.617 g

Light Source: Visible Red LED

Amplifier Type: Photoelectric

Sensing Method: Fixed-Field

Sensing Distance: 600 mm

Connection Method: 5-Pin M12

Output Configuration: NPN, PNP

Supply Voltage - Max: 30 VDC

Supply Voltage - Min: 10 VDC

Operating Supply Voltage: 10 VDC to 30 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
