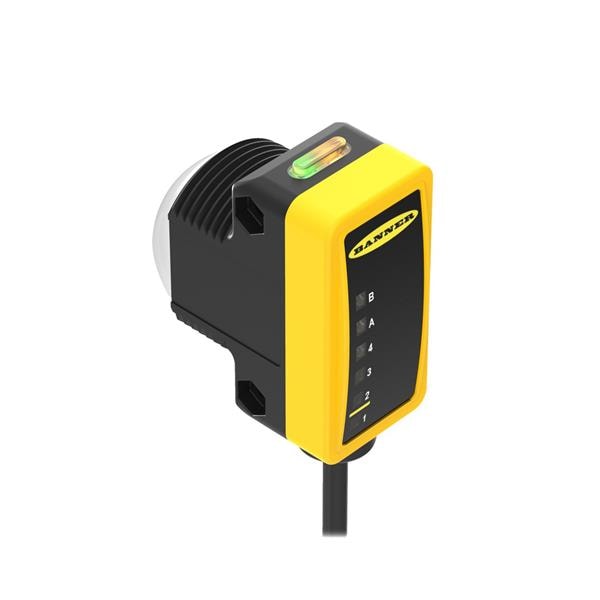

Banner Engineering QS30ARXSH2OQ5 Photoelectric Sensors WORLD-BEAM QS30 Series: High-Powered Receiver water detection; Range: 8 m; Input: 10-30 V dc; Output: LO (Light Operate) Bipolar: 1 NPN; 1 PNP; 150 mm (6 in) 5-pin M12 Pigtail QD PVC Connector

Width: 54.3 mm

Height: 44 mm

Length: 22 mm

IP Rating: IP67

Unit Weight: 149.685 g

Light Source: Infrared

Amplifier Type: Photoelectric

Sensing Method: Opposed Receiver

Sensing Distance: 4 m

Connection Method: 5-Pin Euro-Style

Output Configuration: NPN, PNP

Supply Voltage - Max: 30 VDC

Supply Voltage - Min: 10 VDC

Operating Supply Voltage: 10 VDC to 30 VDC

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 20 C
