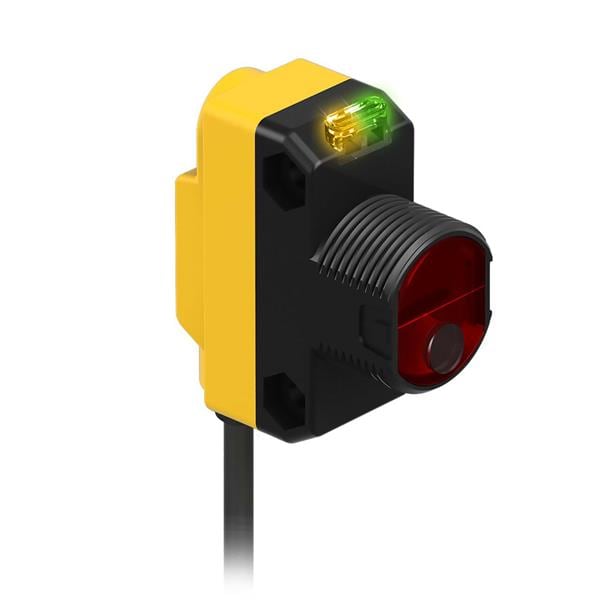

Banner Engineering QS18VP6LD Photoelectric Sensors WORLD-BEAM QS18 Series: Laser Diffuse; Range: 300 mm; Input: 10-30 V dc; Output: Complementary Solid-State PNP; 2 m (6.5 ft) Cable

Width: 33.5 mm

Height: 35 mm

Length: 15 mm

IP Rating: IP67

Light Source: Visible Red LED

Amplifier Type: Laser

Sensing Method: Diffuse Reflective

Sensing Distance: 300 mm

Connection Method: Cable

Output Configuration: PNP

Supply Voltage - Max: 30 VDC

Supply Voltage - Min: 10 VDC

Operating Supply Voltage: 10 VDC to 30 VDC

Maximum Operating Temperature: + 50 C

Minimum Operating Temperature: - 10 C
