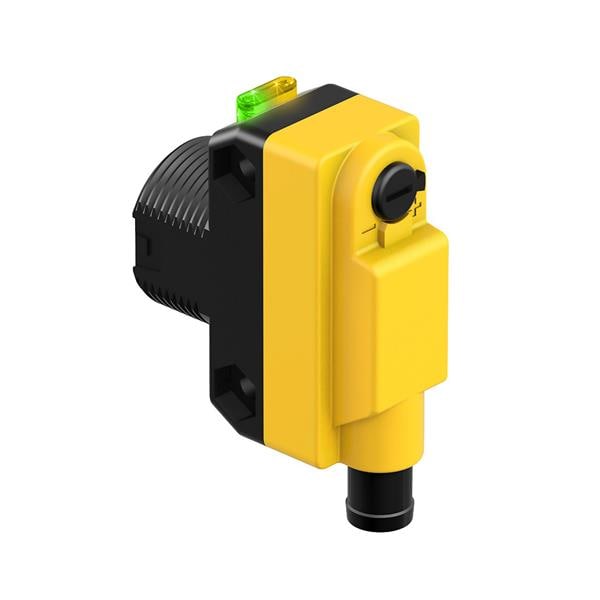

Banner Engineering QS18VP6DVSQ8 Photoelectric Sensors WORLD-BEAM QS18 Series: Small Spot Diffuse Vis. Red; Range: 250 mm; Input: 10-30 V dc; Output:Complementary Solid-State PNP; M12 Integral QD

Width: 31 mm

Height: 35 mm

Length: 15 mm

IP Rating: IP67

Unit Weight: 25 g

Light Source: Visible Red LED

Amplifier Type: Photoelectric

Sensing Method: Diffuse Reflective

Sensing Distance: 250 mm

Connection Method: 4-Pin M12 Euro-Style

Output Configuration: PNP

Supply Voltage - Max: 30 VDC

Supply Voltage - Min: 10 VDC

Operating Supply Voltage: 10 VDC to 30 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
