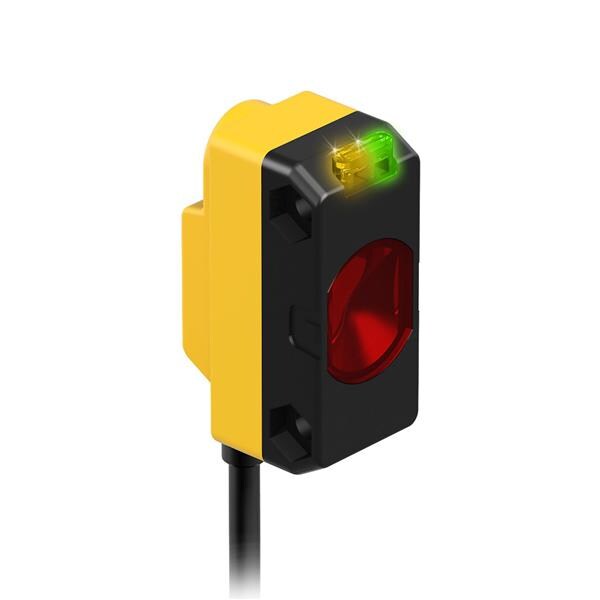

Banner Engineering QS18VN6RBQ Photoelectric Sensors WORLD-BEAM QS18 Series: Receiver (FLush Front); Range: 3 m; Input: 10-30 V dc; Output: Complementary Solid-State NPN; 150 mm (6 in) M8 Pigtail QD

Width: 15 mm

Height: 36 mm

Length: 31 mm

IP Rating: IP67

Unit Weight: 49.895 g

Amplifier Type: Photoelectric

Sensing Method: Opposed

Sensing Distance: 3 m

Connection Method: 4-Pin M8

Output Configuration: NPN

Supply Voltage - Max: 30 VDC

Supply Voltage - Min: 10 VDC

Operating Supply Voltage: 10 VDC to 30 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
