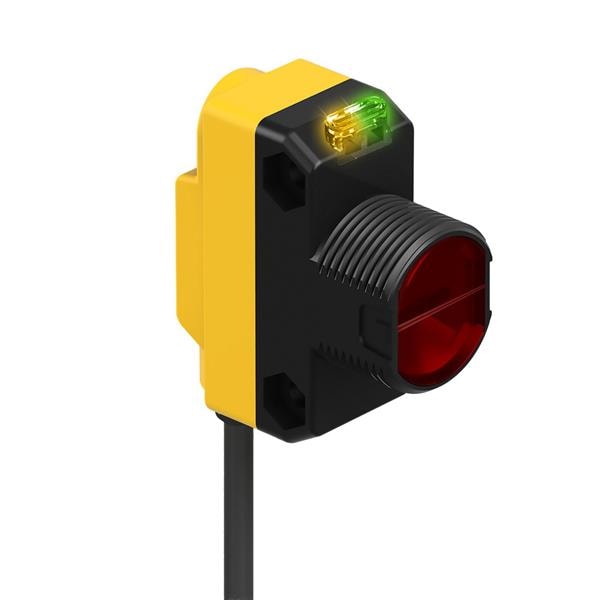

Banner Engineering QS18VN6LLPQ5 Photoelectric Sensors WORLD-BEAM QS18 LASER POLAR RETRO; Range: 0.1-10 m; Input: 10-30 V dc; Output: Complementary Solid-State NPN; 150 mm M12 Pigtail QD

Width: 33.5 mm

Height: 49 mm

Length: 15 mm

IP Rating: IP67

Unit Weight: 99.790 g

Light Source: Visible Red Laser

Amplifier Type: Laser

Sensing Method: Polarized Retroreflective

Sensing Distance: 100 mm to 10 m

Connection Method: 4-Pin Euro-Style

Output Configuration: NPN

Supply Voltage - Max: 30 VDC

Supply Voltage - Min: 10 VDC

Operating Supply Voltage: 10 VDC to 30 VDC

Maximum Operating Temperature: + 50 C

Minimum Operating Temperature: - 10 C
