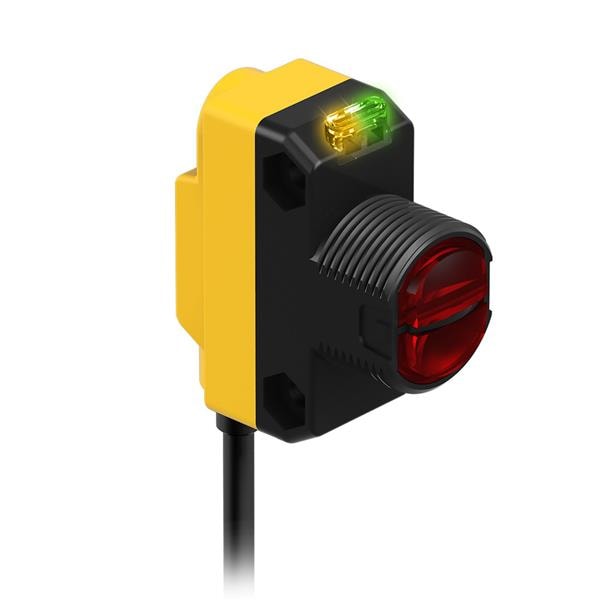

Banner Engineering QS18EP6CV15Q5 Photoelectric Sensors WORLD-BEAM QS18 Expert Series: Convergent; Focal Point: 16 mm; Input: 10-30 V dc; Output: Convergent; 150 mm (6 in) M12 Pigtail QD

Width: 31 mm

Height: 35 mm

Length: 15 mm

IP Rating: IP67

Unit Weight: 51.709 g

Light Source: Visible Red LED

Amplifier Type: Photoelectric

Sensing Method: Convergent

Sensing Distance: 16 mm

Connection Method: 4-Pin

Output Configuration: PNP

Supply Voltage - Max: 30 VDC

Supply Voltage - Min: 10 VDC

Operating Supply Voltage: 10 VDC to 30 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
