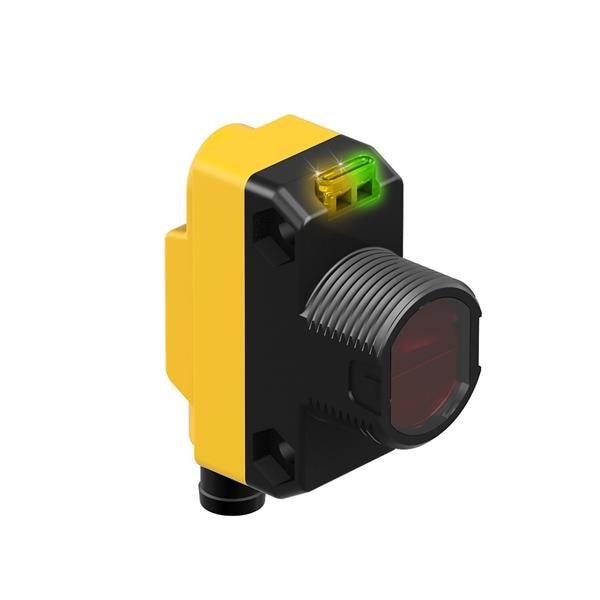

Banner Engineering QS18EN6LPQ7 Photoelectric Sensors WORLD-BEAM QS18 Expert Series: Polar Retro; Range: 3.5 m; Input: 10-30 V dc; Output: Complementary Solid-State NPN; M8 Integral QD

Width: 31 mm

Height: 35 mm

Length: 15 mm

IP Rating: IP67

Unit Weight: 49.895 g

Light Source: Visible Red LED

Amplifier Type: Photoelectric

Sensing Method: Polarized Retroreflective

Sensing Distance: 3.5 m

Connection Method: 4-Pin Pico

Output Configuration: NPN

Supply Voltage - Max: 30 VDC

Supply Voltage - Min: 10 VDC

Operating Supply Voltage: 10 VDC to 30 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
