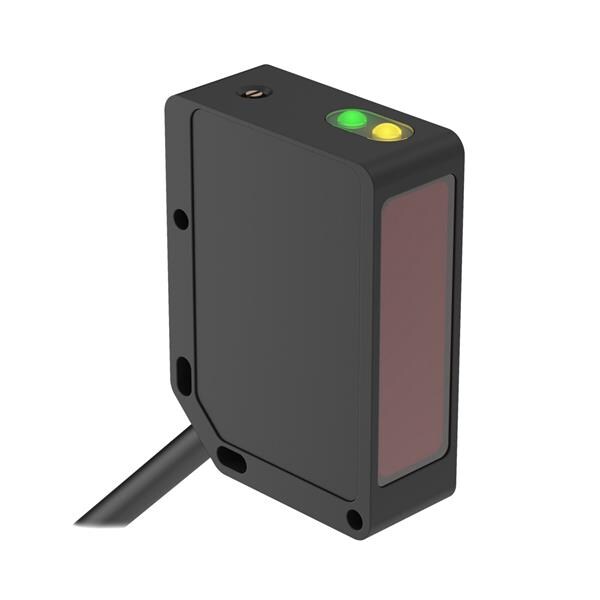

Banner Engineering QMT42VP6FF1000 Photoelectric Sensors QMT42 Series: Fixed Field; Range: 1000 mm; Input: 10-30 V dc; Output: SPDT (Complementary) PNP; 2 m (6.5 ft) cable

Width: 42 mm

Height: 58 mm

Length: 18 mm

IP Rating: IP67

Unit Weight: 250.383 g

Light Source: Infrared

Amplifier Type: Photoelectric

Sensing Method: Fixed-Field

Sensing Distance: 1 m

Connection Method: Cable

Output Configuration: PNP

Supply Voltage - Max: 30 VDC

Supply Voltage - Min: 10 VDC

Operating Supply Voltage: 10 VDC to 30 VDC

Maximum Operating Temperature: + 55 C

Minimum Operating Temperature: - 20 C
