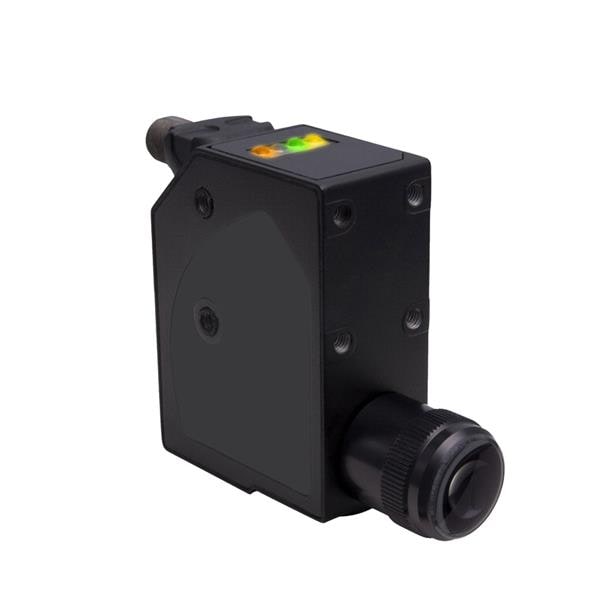

Banner Engineering QL56M6XD30BQ Photoelectric Sensors QL56 Series Luminescence Sensor; Range: 20-40 mm; Input: 15-30 V dc; Output: Bipolar (1 NPN and 1 PNP); 0.75-5.5 V analog; 5-pin M12 Integral QD

Width: 79 mm

Height: 60 mm

Length: 31.9 mm

IP Rating: IP67

Unit Weight: 204.071 g

Light Source: LED

Sensing Distance: 20 mm to 40 mm

Connection Method: 5-Pin M12

Output Configuration: Bipolar

Supply Voltage - Max: 30 VDC

Supply Voltage - Min: 15 VDC

Operating Supply Voltage: 15 VDC to 30 VDC

Maximum Operating Temperature: + 55 C

Minimum Operating Temperature: - 10 C
