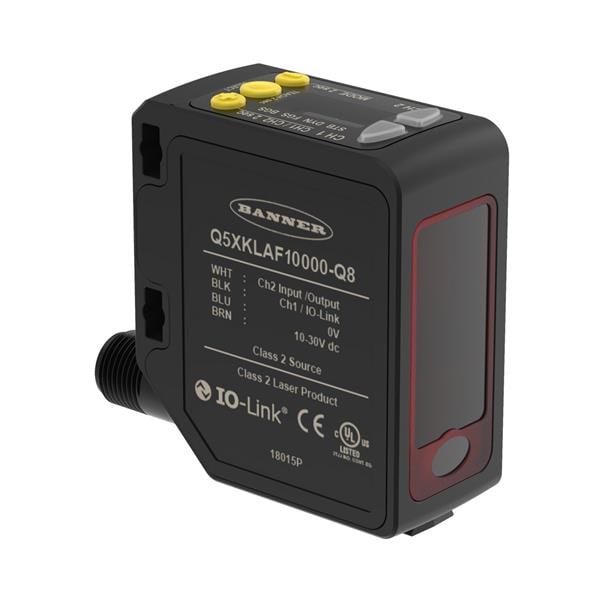

Banner Engineering Q5XKLAF10000-Q8 Photoelectric Sensors Q5X Series: Laser Adjustable Field; Range: 50-10000 mm; Input: 10-30 V dc; Output: 1 PNP/NPN with IO-Link; 1 PNP/NPN Multi-Function I/O; 4-pin M12 Rotatable Connector

IP Rating: IP67

Unit Weight: 103.736 g

Light Source: Visible Red

Sensing Method: Background Suppression

Sensing Distance: 10 m

Connection Method: 4-Pin M12

Output Configuration: NPN, PNP

Supply Voltage - Max: 30 VDC

Supply Voltage - Min: 10 VDC

Operating Supply Voltage: 10 VDC to 30 VDC

Maximum Operating Temperature: + 50 C

Minimum Operating Temperature: - 10 C
