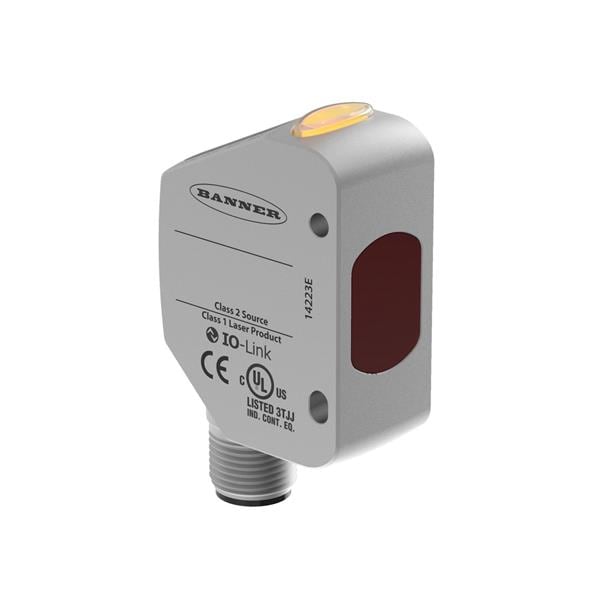

Banner Engineering Q4XFKLAF310-Q8 Photoelectric Sensors Q4X Series: Laser Adjustable Field; Range: 310 mm; Input: 10-30 V dc; Output: 1 PNP/NPN with IO-Link Communication; 1 PNP; 4-pin M12 Integral QD; Flush Mount Housing

IP Rating: IP67, IP68, IP69K

Unit Weight: 149.685 g

Light Source: Visible Red

Sensing Method: Background Suppression

Sensing Distance: 0.11 mm

Connection Method: 4-Pin M12

Output Configuration: NPN, PNP

Supply Voltage - Max: 30 VDC

Supply Voltage - Min: 10 VDC

Operating Supply Voltage: 10 VDC to 30 VDC

Maximum Operating Temperature: + 50 C

Minimum Operating Temperature: - 10 C
