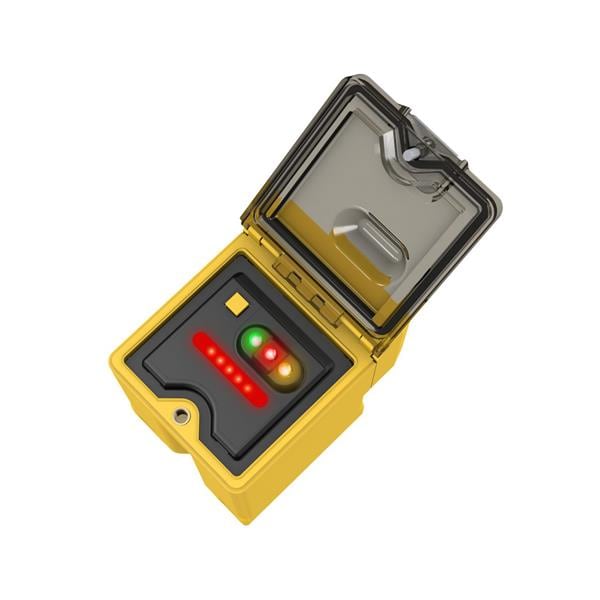

Banner Engineering Q45VR3LPQPMA2D Photoelectric Sensors Q45 VR3LPQPMA2D; 45LMD Logic Module; 150 mm (6 in) 4-pin M12 PUR Pigtail QD

Width: 54.1 mm

Height: 87.6 mm

Length: 44.5 mm

IP Rating: IP67

Unit Weight: 299.371 g

Light Source: Visible Red LED

Amplifier Type: Photoelectric

Sensing Method: Polarized Retroreflective

Sensing Distance: 6 m

Connection Method: 4-Pin M12

Output Configuration: SPDT

Supply Voltage - Max: 250 VAC/DC

Supply Voltage - Min: 24 VAC/12 VDC

Operating Supply Voltage: 24 VAC to 250 VAC, 12 VDC to 250 VDC

Maximum Operating Temperature: + 55 C

Minimum Operating Temperature: - 25 C
