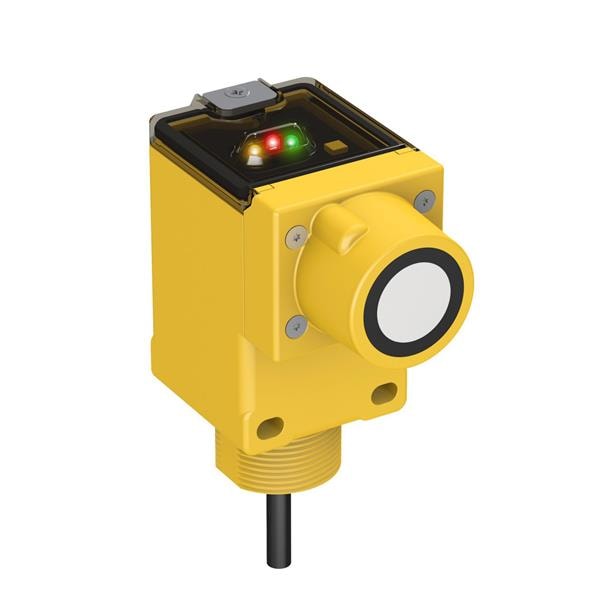

Banner Engineering Q45UBB63BC Photoelectric Sensors Discrete Q45U Series: Proximity Mode; Range: 250 mm - 3 m; Input: 12-24 V dc; Output: Bipolar: 1 NPN; 1 PNP; 2 m (6.5 ft) Cable

IP Rating: IP67

Unit Weight: 381.017 g

Light Source: Ultrasonic

Sensing Method: Time-of-Flight

Sensing Distance: 250 mm to 3000 mm

Connection Method: Cable

Output Configuration: NPN, PNP

Supply Voltage - Max: 24 VDC

Supply Voltage - Min: 12 VDC

Operating Supply Voltage: 12 VDC to 24 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 25 C
