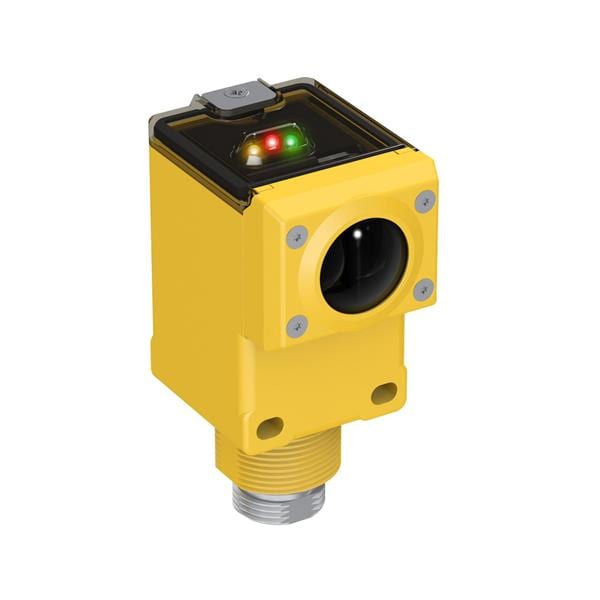

Banner Engineering Q45BW22CV4Q1 Photoelectric Sensors Q45 Series: Convergent; Focal Point: 100 mm; Input: 90-250 V ac; Output: SPST Solid-state Relay; 4-pin Micro Integral QD

Width: 61.7 mm

Height: 87.6 mm

Length: 44.5 mm

IP Rating: IP67

Unit Weight: 253.104 g

Light Source: Visible Red LED

Amplifier Type: Photoelectric

Sensing Method: Convergent

Sensing Distance: 100 mm

Connection Method: 4-Pin Micro

Output Configuration: Solid-State Relay

Supply Voltage - Max: 250 VAC

Supply Voltage - Min: 90 VAC

Operating Supply Voltage: 90 VAC to 250 VAC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
