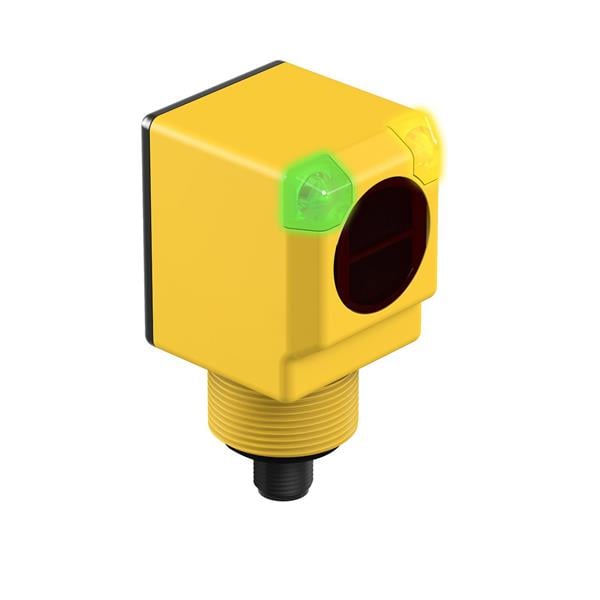

Banner Engineering Q40RW3FF600Q1 Photoelectric Sensors EZ-BEAM Q40 Series: Fixed Field; Range: 600 mm; Input: 20-250 V ac; Output: SPST Solid-state Dark Operate; 4-pin Micro Integral QD

Width: 46 mm

Height: 82.5 mm

Length: 40.1 mm

IP Rating: IP69K

Unit Weight: 153.314 g

Light Source: Infrared

Amplifier Type: Photoelectric

Sensing Method: Fixed-Field

Sensing Distance: 600 mm

Connection Method: 4-Pin Euro-Style

Output Configuration: Solid-State Relay

Supply Voltage - Max: 250 VAC

Supply Voltage - Min: 20 VAC

Operating Supply Voltage: 20 VAC to 250 VAC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
