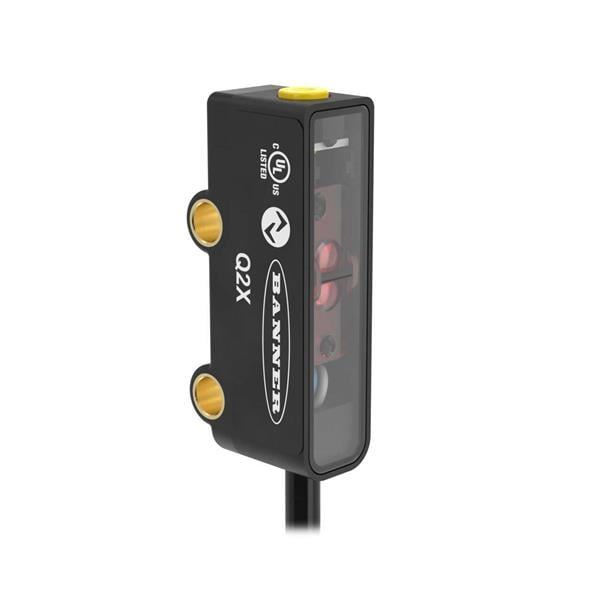

Banner Engineering Q2XKLAF3IR-Q5 Photoelectric Sensors Q2X Series: IR Laser Adjustable Field; Range: 20-3000 mm; Input 10-30 V dc; Output: 1 PNP with IO-Link; 1 PNP Multi-Function I/O; 150 mm (6 in) M12 Pigtail QD

Width: 11.3 mm

Height: 31 mm

Length: 8 mm

Features: Class 1 IR Laser Emitter

IP Rating: IP67

Light Source: Infrared

Sensing Method: Laser

Sensing Distance: 20 mm to 3000 mm

Connection Method: 4-Pin M12

Output Configuration: PNP

Supply Voltage - Max: 30 VDC

Supply Voltage - Min: 10 VDC

Operating Supply Voltage: 10 VDC to 30 VDC

Maximum Operating Temperature: + 50 C

Minimum Operating Temperature: - 20 C
