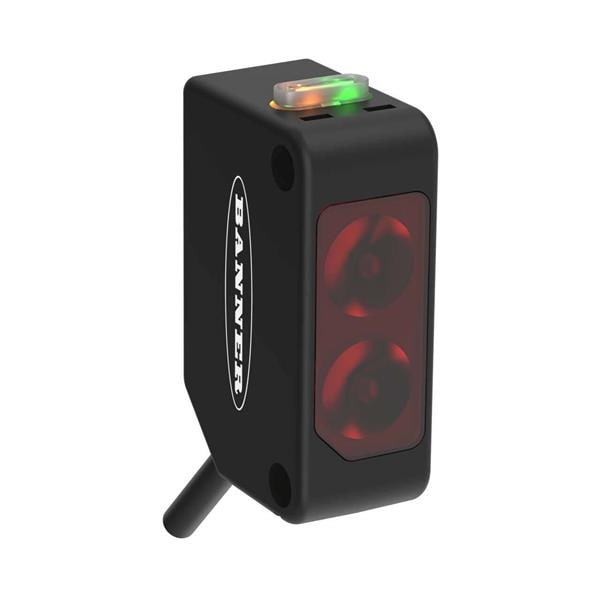

Banner Engineering Q20APLPFQ-3 Photoelectric Sensors WORLD-BEAM Q20 Series: Fixed Gain Polarized Retro; Range: 4 m; Input 10-30 V dc; Output: Single Light Operate PNP; 200 mm 3-pin M8 Pigtail QD

Width: 20 mm

Height: 42 mm

Length: 12 mm

IP Rating: IP67

Unit Weight: 22.680 g

Light Source: Visible Red LED

Sensing Method: Polarized Retroreflective

Sensing Distance: 4 m

Connection Method: 3-Pin M8

Output Configuration: PNP

Supply Voltage - Max: 30 VDC

Supply Voltage - Min: 10 VDC

Operating Supply Voltage: 10 VDC to 30 VDC

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 20 C
