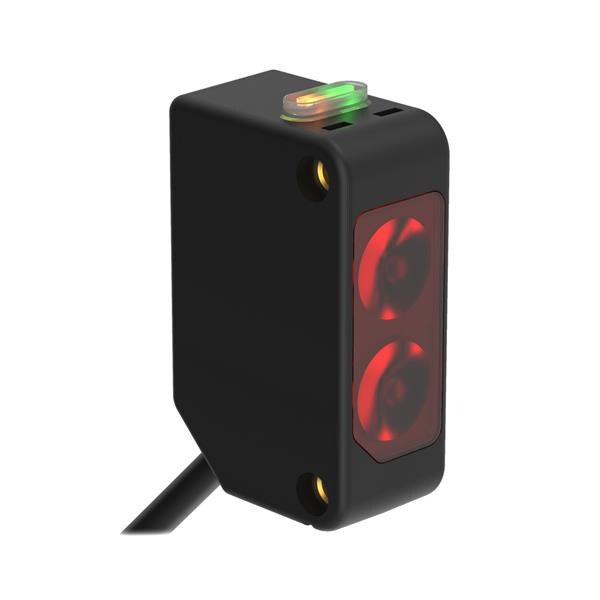

Banner Engineering Q20APFF50Q3 Photoelectric Sensors WORLD-BEAM Q20 Series: Fixed-Field; Range: 50 mm; Input 10-30 V dc; Output: LO Solid-State PNP NO; 3-pin M8 150 mm (6 in) Pigtail

Width: 20 mm

Height: 42 mm

Length: 12 mm

IP Rating: IP67

Unit Weight: 20.185 g

Light Source: Visible Red LED

Sensing Method: Fixed-Field

Sensing Distance: 50 mm

Connection Method: 3-Pin M8

Output Configuration: PNP

Supply Voltage - Max: 30 VDC

Supply Voltage - Min: 10 VDC

Operating Supply Voltage: 10 VDC to 30 VDC

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 20 C
