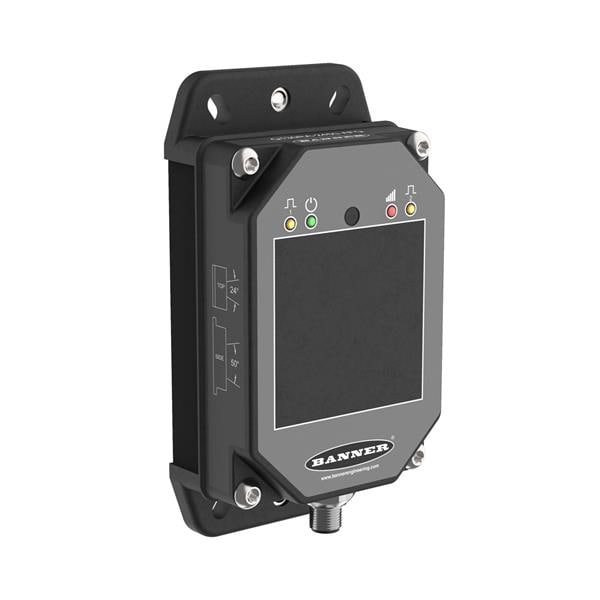

Banner Engineering Q130RA-9076-AFQ Photoelectric Sensors R-GAGE Series Radar Sensor; Bipolar Outputs; Range 1 to 24 m Single Zone; Response Speed 50 ms; 5-pin M12 Integral QD

Width: 50 mm

Height: 170.5 mm

Length: 90.8 mm

Features: Adjustable Sensing Field, Easy Setup and Configuration, FMCW Radar Detects Moving and Stationary Objects, Sensing Functions are Unaffected by Air Temperatures, Fog, Humidity, Light, Rain or Snow, Sensor Operates in ISM Band

IP Rating: IP67

Sensing Method: Radar

Sensing Distance: 24 m

Supply Voltage - Max: 30 VDC

Supply Voltage - Min: 12 VDC

Operating Supply Voltage: 12 VDC to 30 VDC

Maximum Operating Temperature: + 65 C

Minimum Operating Temperature: - 40 C
