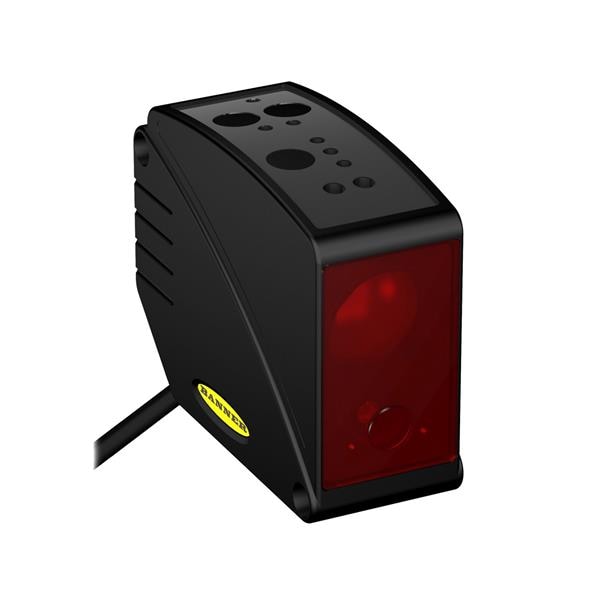

Banner Engineering LT3PU Distance Sensor Modules - Finished Units LT3 Series: Diffuse T.O.F. Laser Distance Measurement; Range: 0.3-5.0 m; Input: 12-24 V dc; Analog Output: 0-10 V; Discrete Output: PNP; 2 m (6.5 ft) Cable

Width: 35.3 mm

Height: 68.5 mm

Length: 87 mm

IP Rating: IP67

Unit Weight: 299.371 g

Mounting Style: Chassis Mount

Sensing Distance: 300 mm to 5 m

Supply Voltage - Max: 24 VDC

Supply Voltage - Min: 12 VDC

Operating Supply Current: 108 mA

Operating Supply Voltage: 12 VDC to 24 VDC

Maximum Operating Temperature: + 50 C

Minimum Operating Temperature: 0 C
