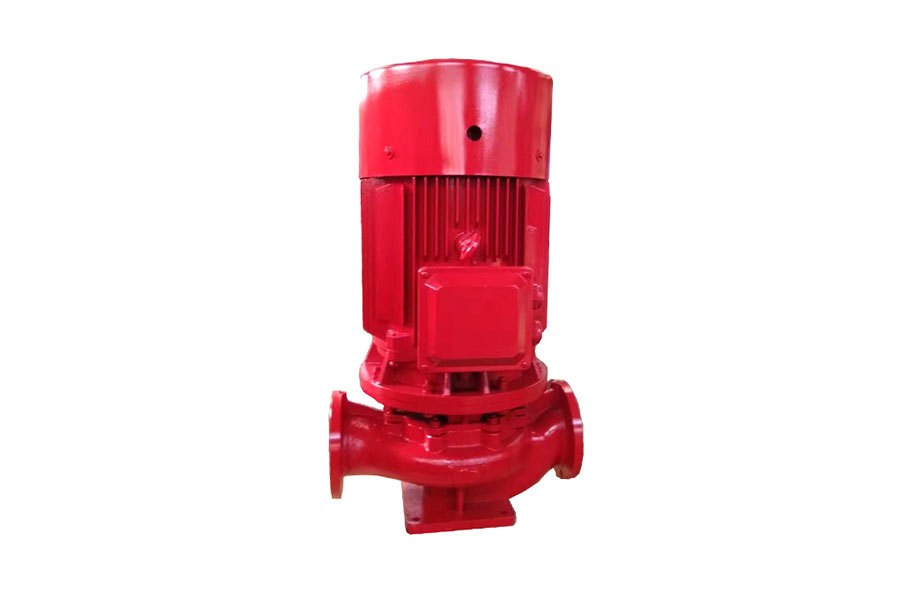

Bangpu XBD-BPW Single stage and single suction fire-fighting pump (18-720m3/h)

Capacity: 18–720 m³/h

Head: 0.3–1.5 MPa

Medium temperature: 0 ℃ – 80 ℃

Maximum pressure: ≤16 bar

It is mainly used for building fire-fighting water supply, and can transport clean water below 80°C or clean liquids with physical and chemical properties similar to water; and lightly corrosive liquids. This series of fire pumps are mainly used for the water supply of fixed fire protection systems (fire hydrant fire extinguishing systems, automatic sprinkler systems and water spray fire extinguishing systems, etc.) in industrial and civil buildings.

Install discrete type (BPL) and horizontal type (BPW), choose according to needs Flow range: 5L/-200L/S, 4. (18m³/h-720m³/h) Pressure range: 0.3MPa-1.5MPa The pump is allowed to import Pressure≤0.3MPa (users must indicate the pump inlet pressure value when ordering)
