BalunTech BL762 Humidity Calibration Chamber (±0.2%RH (± 0.1℃); ±0.1%RH (± 0.02℃); 5~95%RH, -30 - 80℃)

Working principle: auto mixing of dry andwet air

Humidity range:   5…95%RH ( ≥ 20℃)

Temperature range: -5…65℃ (-30…+80℃ is option)

Humidity stability:   ±0.1%RH

Temperature stability: ±0.02℃

Humidity uniformity: ±0.2%RH

Temperature uniformity:   ±0.1℃

Humidity ramp/soak changes: <5 minutes for 20% RH

Temperature changes: 0.1℃/ minute

Humidity resolution: 0.1%RH

Temperature resolution: 0.01℃

Request water: distilled water

Desiccant type: Molecular Sieve

Chamber dimension: 500 x 500 x 600mm

Effective volume: 125L

Power supply: 220VAC 50Hz

Power consume: 10KW

Dimension (W*D*H): 1050 x 1500 x 1800mm

Weight: 350kg

Operation environment: 10°C to 35°C, <80%RH

SCOPE OF DELIVERY

BL765 Humidity generator

Air compressor

Heatless regeneration adsorption compressor

Overflow pipe

Funnel

Rubber stopper

Test frame

User manual

Warranty Certificate

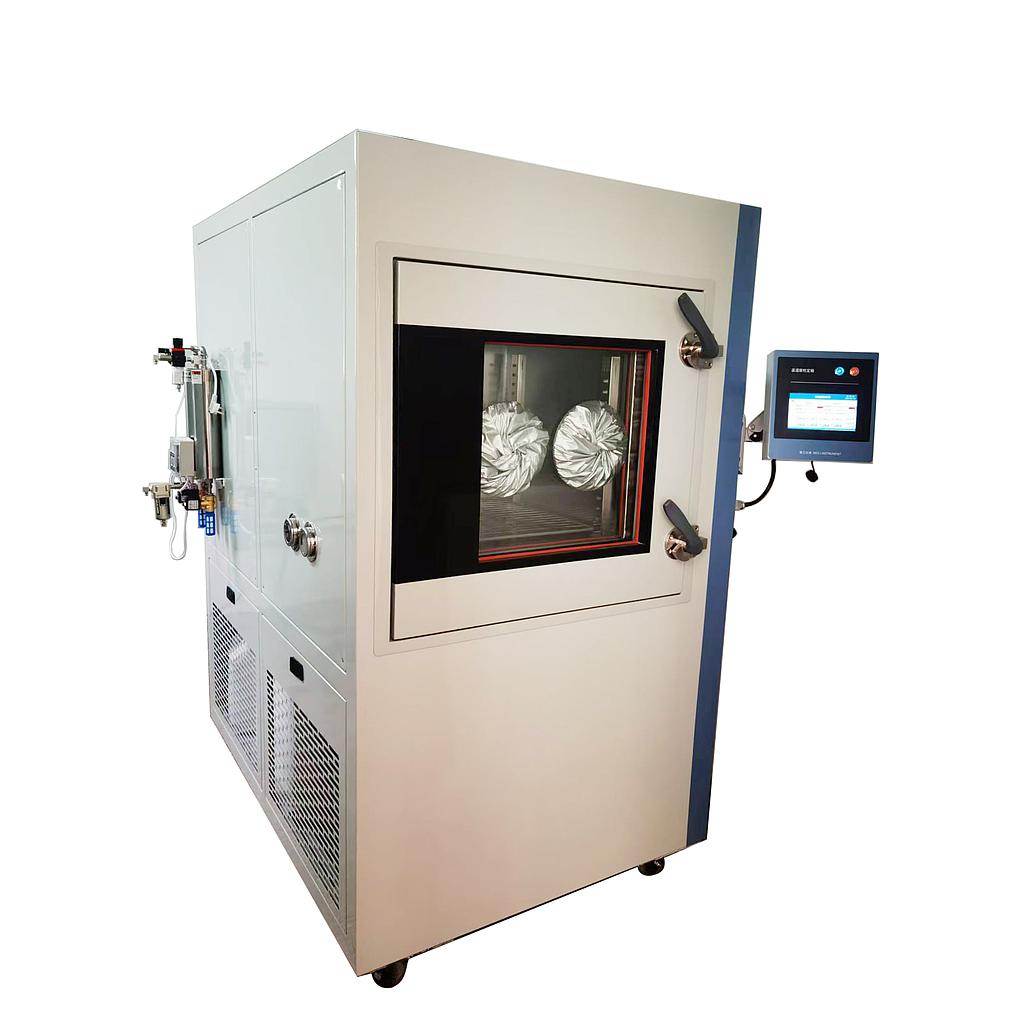

The BL762 humidity calibration chamber is a vertical temperature and humidity generator that supports large calibration equipment. This unit features a temperature-controlled door, which is designed to maintain internal temperature and remain unchanged due to outside ambient temperature changes. The chamber temperature is controlled by a Peltier heat pump arrangement for maximum stability and minimum temperature gradient. The saturator assembly can be filled easily and can be recycled by heating when required.

DATASHEET

FEATURES

5-95%RH humidity @ 20℃

Dew point is low to -60℃ DP.

Stability is ±0.1%RH and ± 0.02℃

Uniformity is   ±0.2%RH and ± 0.1℃

Rapid humidity and temperaturestabilization time, much faster than traditional two-pressure generator.

125L effective work volume

Touch screen operation

APPLICATION

Humidity calibration laboratory

Humidity test workshops
