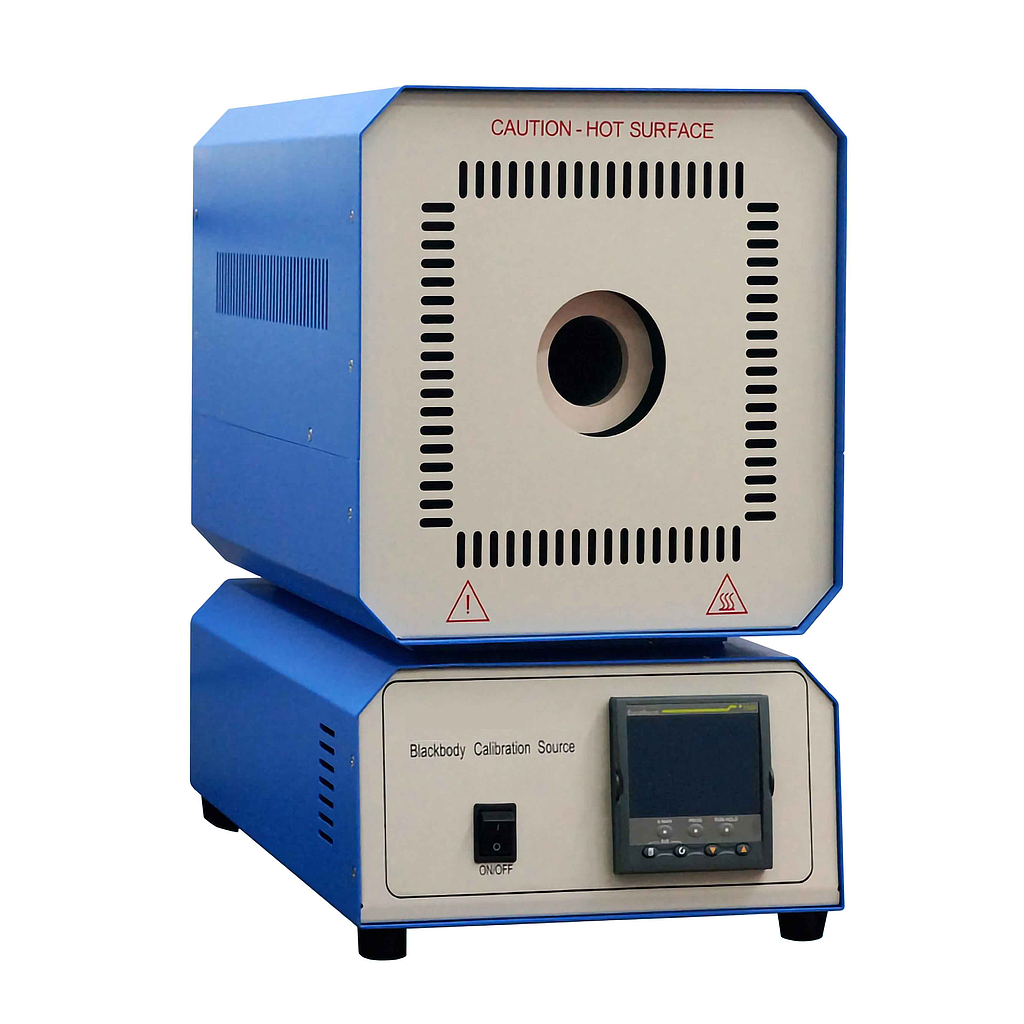

BalunTech BL678A-220V High Temperature Blackbody Furnace (100℃ ~ 1200℃)

Temperature range: 100℃ to 1200℃

Aperture Diameter: 50 mm (1.97 inch)

Heated Emitter Shape: Closed end tube

Emissivity: better than 0.995

Display Resolution: 0.1℃

Control stability (10min): 0.1℃ or 0.1%RD (whichever is great)

Uniformity: 0.15℃ or 0.15RD (whichever is great)

Tube depth: 290mm

Control Method: Digital PID

Temperature Sensor: Precision N thermocouple

Power Supply: 220V AC / 2000WA

Interface: RS232

Heat up time: 90 minutes from ambient to 1200℃

Calibration Method: Pyrometric standard calibration

Dimension w/o holder: 300mm(W) x 370mm(H) x 570mm(D)

Net Weight: 20 kg approx.

The BL678A is a benchtop blackbody calibration source utilizing a digital indicating temperature ambient 300℃ to 1200℃. A precision platinum thermocouple N temperature sensor is embedded in the blackbody emitter, providing high accuracy and repeatability. The temperature controller uses the industry standard PID algorithms to control the emitter temperature to within 0.1℃ of the set points. The black body emitter mechanism uses a resistive heating device that provides a long life, short stabilization times, and stable temperature control.

FEATURE

Temperature range 100℃ to 1200℃

Emissivity is better than 0.995

Temperature uniformity is up to 0.15℃

50 mm aperture diameter is compliance with most of D:S

Build-in temperature correction function

APPLICATION

Infrared temperature sensors

Infrared thermal imaging systems

Spectrographic analyzers

Spectral radiometers

Heat flux meter
