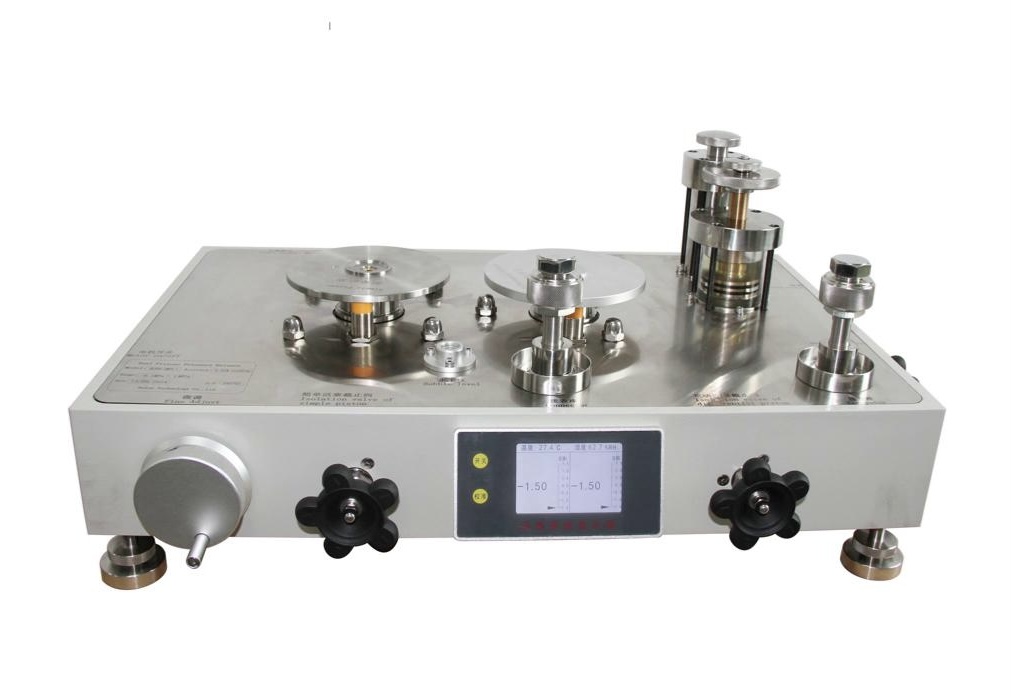

BalunTech BL505-1MPA-2 Dual Pistons Pressure Balance (-0.1~1 MPa, 0.02%rd)

Pressure range: -0.1~1 MPa

Accuracy: 0.02%

Piston material: Tungsten Carbide

Cylinder material: Tungsten Carbide

Mass material: 304 stainless steel

Base material: Aluminium alloy

Medium: Dry air or pure nitrogen

Gravity: Customize to local or standard 9.80665 m/s²

Pressure connector: Metric

Power supply: 100-240VAC

Base dimension: 310 mm (H) x 680 mm (L) x 480 mm (D)

Base weight: 26kg

SCOPE OF DELIVERY

BL505 Dual piston pressure balance base

Master and slave piston cylinder unit

Master and slave 304 stainless steel mass set

Master and slave mass carrier or bell

Adapter kits (1/4’’ NPT, ½’’ NPT, G1/4, G1/2)

Datasheet

The model BL505 dual piston pressure balance is based on the principle of static pressure, which achieves a force balance system through a master piston and a slave piston. When the system is under positive pressure, the balance of the two pistons is disrupted. The slave piston rises and the master piston falls. In order to restore the original balance of the system, several weights must be added to the slave piston to restore balance. At this time, the weight of the added weights is the pressure value of the tested system. On the contrary, if negative pressure is introduced to the system, the salve piston falls and the master piston rises. At this time, several weights must be added to the master piston to balance it, and the weight of the added weights is the vacuum value of the tested system.

FEATURES

-0.1MPa to 0.1MPa pressure range

0.01% of reading, 0.02% of reading accuracy

Motor drives the weight rotating.

Front LED shows piston position, real temperature and humidity.

The oil pressure regulator and oil gas isolator are equipped with needle valves.

APPLICATION

Calibrate spring tube pressure gauges and precision spring tube vacuum gauges.

Test mercury pressure gauges and non-corrosive industrial pressure gauges.
