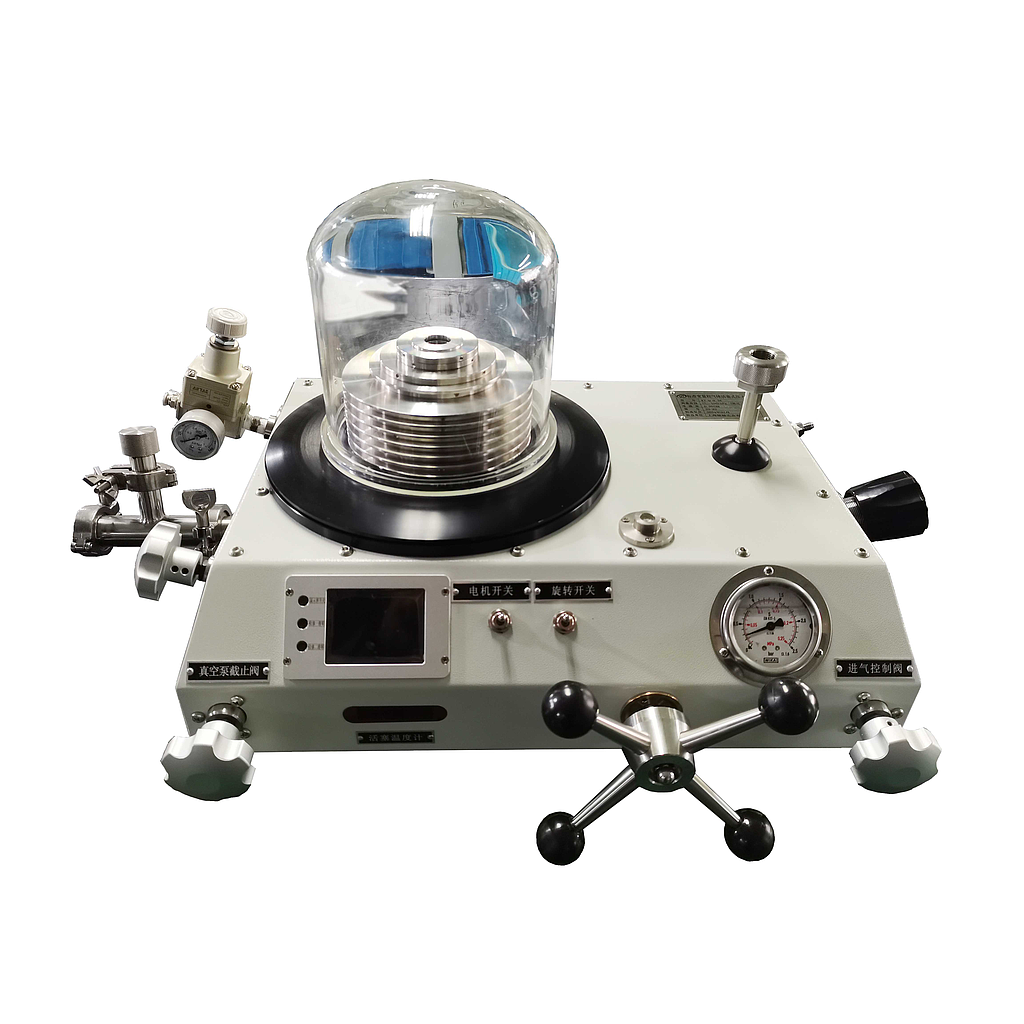

BalunTech BL503-2MPA-05 Absolute Pressure Piston Gauge (0.01~ 2MPa, 0.005%)

Pressure ranges: (0.01~ 2)MPa, (0.05~ 2) MPa abs

Accuracy: 0.005% of reading

Kn: 100kPa/kg

Area: 1 cm²

Mass: 20 kg

Piston and cylinder material: Tungsten Carbide

Mass material: 304 stainless steels

Pipe line material: 316L stainless steels

Pneumatic base material: Aluminium alloy

Seal material: Buna-N, PTFE, Cu Alloy

Medium: Dry and clean air, or pure nitrogen

Gravity: 9.80665 m/s² or customize local value.

Pressure units available: MPa, bar, psi (optional)

Pressure connector: Metric

Base dimension (L*D*H): 185 x 455 x 380 mm

Base weight: Appro.20kg

SCOPE OF DELIVERY

BL503 Absolute pressure piston gauge base

Piston cylinder unit

304 stainless steel mass set

Mass carrier

Bell jar

Vacuum meter

Adapter kits (1/4NPT, ½NPT, ¼G, ½G)

Datasheet

The gas operated BL503 absolute pressure piston gauges as primary standards for absolute pressure and gauge pressure, with emphasis on obtaining the effective area from the piston cylinder dimensions and the mass in vacuum of the pressure balance floating element. It is designed to enable metrology and research institutes to realize and disseminate exceptional fundamental pressure measurements.

FEATURES

0.005% of reading accuracy

Pressure ranges is up to 20MPa

Three different piston cylinder units can be exchanged for different pressure

20kg mass set or optional 40kg mass set

Build-in motor to rotate the mass set

With dial piston position indicator

PT100 shows the piston temperature

Pirani vacuum gauge can accurately measure residual vacuum in bell jar.

The aluminum alloy base that has been processed as a whole ensures the assembly accuracy and operational flexibility of the system

All internal pressure fittings are made of stainless steel material to avoid rusting of key sealing components and frequent equipment maintenance

APPLICATION

Primary pressure standard in lab

Reference pressure measure in workshop
