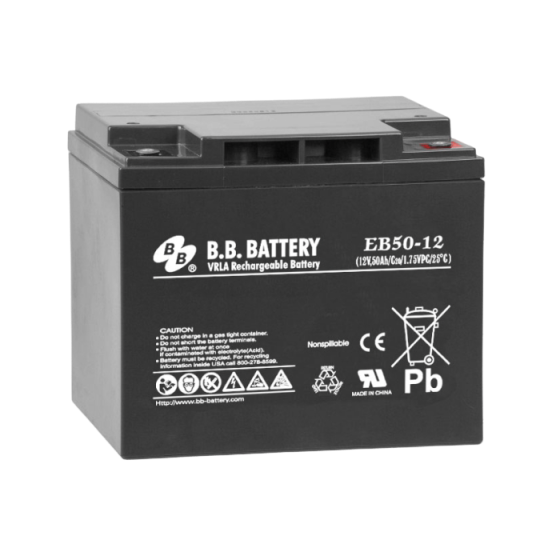

B.B. Battery EB50-12 VRLA Rechargeable Battery (12V)

Nominal Voltage:12V

Nominal Capacity: 50Ah @ 20-hour rate (F.V. 1.75V/cell)

Approx. Weight: 16500g (36.38 lbs)

Terminals:M6 Female thread

Internal Resistance: ≤6mΩ (Fully Charged)

Max. Discharge Current: 750A (5 seconds)

Max. Charge Current: 15A

Operating Temperature Range:

Charge: 0°C - 40°C (32°F - 104°F)

Discharge: -20°C - 50°C (-4°F - 122°F)

Storage: -20°C - 40°C (-4°F - 104°F)

Container Material:

Standard: ABS (UL94 HB) EB50-12

Optional: Flame Retardant ABS (UL94 V-0) EB50-12FR

Compliance Standards: IEC 61056-1, JIS C 8702-1, GB/T 19639.1

Dimensions (mm/inch)

Length: 197 ± 1.5 (7.76 ± 0.06)

Width: 165 ± 1.5 (6.50 ± 0.06)

Container Height: 171 ± 1.5 (6.73 ± 0.06)

Total Height: 171 ± 1.5 (6.73 ± 0.06)

Terminal Type: I2

Terminal Hardware Initial Torque: I2 (5.5Nm ± 5%)
