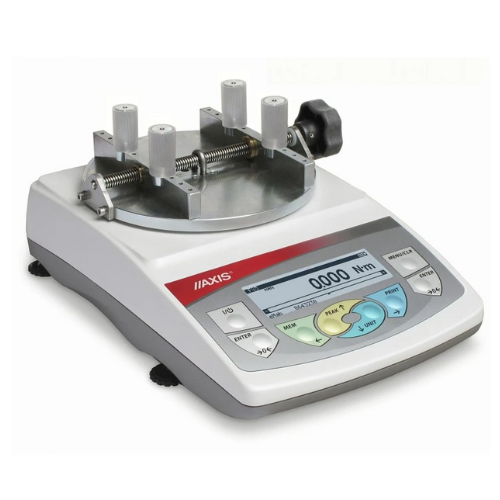

AXIS FSA5 Torque gauge (5Nm, 0.001Nm)

Maximum force measured:5Nm (~0.5kgfm)

Reading graduation:0.001Nm

Accuracy:±0.5% F.S.

Maximum overload:150% F.S.

Operational temperature:-10 ÷ +40°C

Units:Nm, Ncm, kgfm, lbfin, gfm

Display:grafical LCD

Measurement speed:max 1000 measurements/s

Measuring functions:maximal value measurement, serial measurement, measurement in time

Measurements memory:RAM 6 400 measurements, microSD card slot; only FC: optional RAM memory expansion to 72000 measurements or 26000 with date+time

Interfaces:RS232C, USB, clock; options: trigger IN, transoptor OUT (for thr function)

Software:AXIS FM program

Power supply:internal accumulators NiMH: 4x1.2V 2700mAh + supply: ~230V 50Hz / 12V; 1.2A

Working time with accumulator:~30h (~25h with backlighting)

Range of diameters:Ø20÷ Ø180mm

Dimensions:345x236x160mm

Weight:5.1kg

Cap torque testers FSA series are designed for measuring torque during opening jar, bottles etc..

Tester is equipped with a wide range clamp to measure variety of objects. Measurement processor enables to register maximal force torque needed for example to open a jar.

Torque measurement can be realized in both directions, measurement time course registration and graph is possible. Clamp has a solid, universal construction that enables adaptation and expansion. Thus FSA can be used in complex measurement systems.

Special functions:

- peak value measurement

- threshold comparision

- statistics

- measurement unit selection
