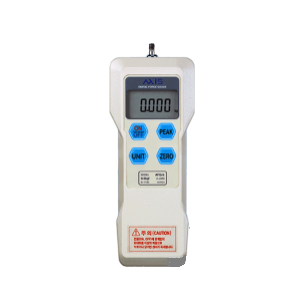

AXIS AFG-50 Push-Pull Gauge (50kg, 10gf)

Maximum load (kg/N): 50kg (490N)

Minimum graduation (kg/N): 10gf (0.1N)

Unit of measure: kgf,N,lbf(ozf)

Measurement time: 20 or more times/second

Degree: ±0.2% (within maximum load)

Allowable load: Rated 200% (105% flash warning)

Indicator: 5 character LCD (forward / reverse display function)

Measurement method: Maximum value (PEAK) / Instant value (NORMAL)

A/D conversion: 20bit sigma-delta method

Operating temperature: 0 to 40 degrees

Output (RS-232): has exist

Output (analog): ±3V (12bit D/A converter method)

Everyone: Ni-Cd rechargeable battery (rechargeable AC adapter)

Product weight: about 0.5kg

Standard configuration: Attachment, AC charging adapter, exclusive storage case
