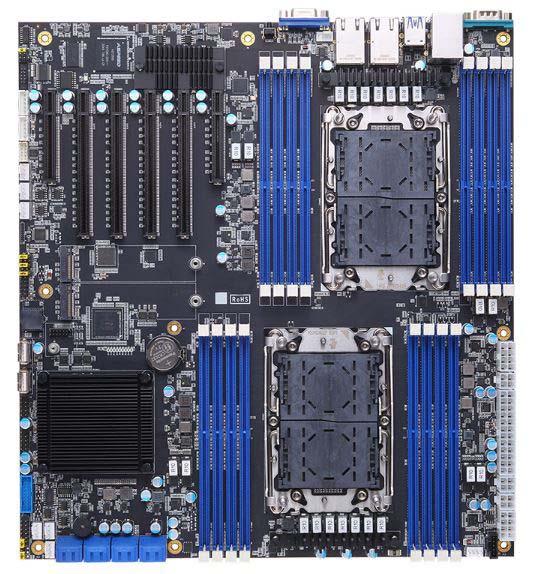

Axiomtek IMB760-C621A-IP SP Industrial Motherboards IMB760-C621A-IP SP

Core: Xeon

Storage: 2 x M.2, 8 x SATA-600

Chipsets: C621A

Dimensions: 330 mm x 305 mm x 2.4 mm

Form Factor: EATX

Memory Type: DDR4-3200

Display Port: 1 x VGA

RAID Support: RAID 0, 1, 5, 10

Installed RAM: 0 GB

Expansion Slot: 2 x PCIe x8, 4 x PCIe x16

Processor Type: Xeon

Processor Brand: Intel

Power Consumption: 270 W

Number of LAN Ports: 2 Port

Number of USB Ports: 6 x USB 2.0, 6 x USB 3.2

Maximum RAM Capacity: 1 TB

Number of SATA Ports: 8 Port

Number of Memory Channels: 16 Channel

Maximum Operating Temperature: + 35 C

Minimum Operating Temperature: + 10 C
