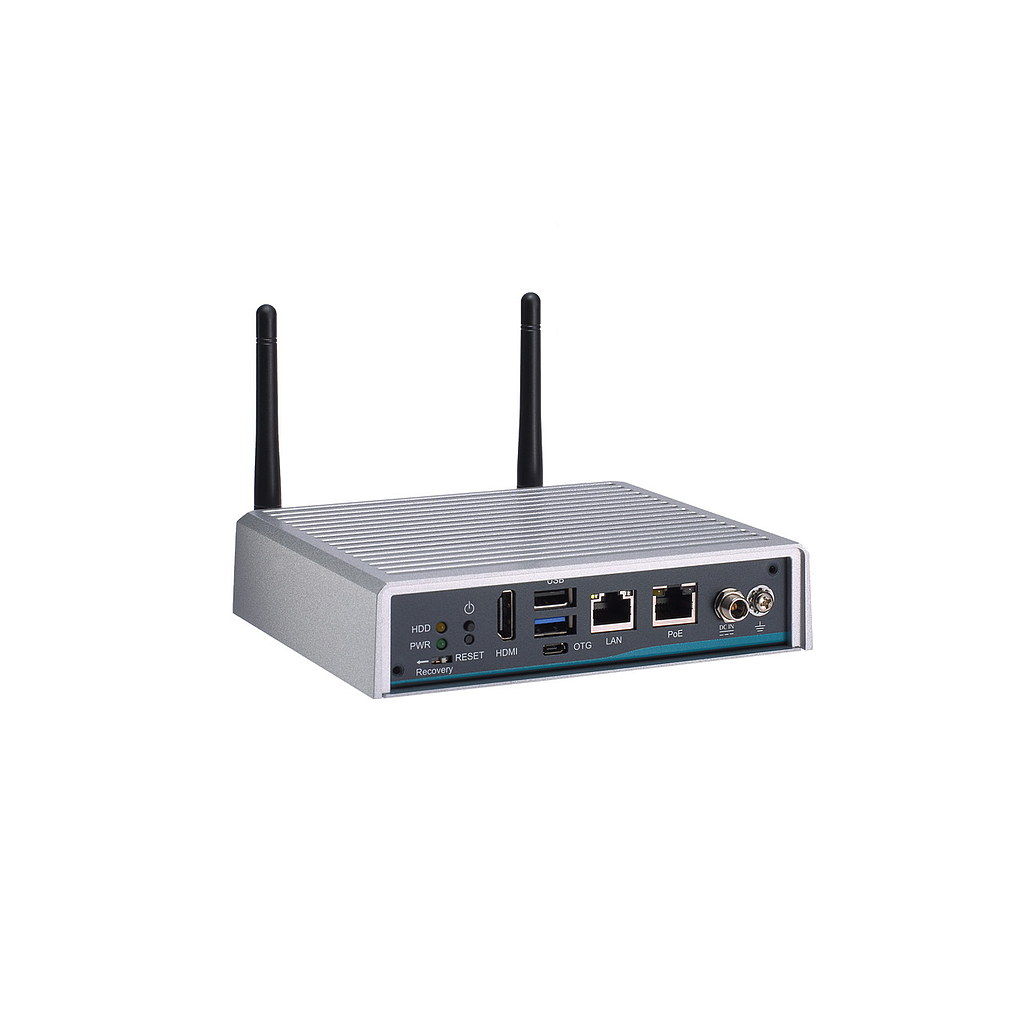

Axiomtek AIE100-903-FL Industrial PCs Fanless Edge AI System

AI Accelerator: NVIDIA® Jetson Nano™

CPU: Quad-core ARM® Cortex®-A57 MPCore processor

GPU: 128-core NVIDIA Maxwell™ GPU

Chipset: SoC integrated

System Memory: 4GB 64-bit LPDDR4 onboard

COM: N/A

USB :

1 x USB 3.1 Gen1

1 x USB 2.0

1 x Micro USB for image flash

Ethernet/PoE:

1 x 10/100/1000 Mbps Ethernet (Via Jetson Nano™)

1 x 10/100/1000 Mbps PoE (Intel® I210-IT; max. up to 15W)

Display: 1 x HDMI 2.0 with 4K2K supported

Digital I/O: N/A

Audio: N/A

Storage:

Onboard 16GB eMMC (via Jetson Nano™)

1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot

1 x Micro SD slot

Expansion:

1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)

1 x SIM slot

Others

1 x Recovery switch

1 x Reset button

1 x Power button

1 x 12 VDC power input connector

2 x SMA-type antenna connector

Power Supply: 12 VDC screw type

Watchdog Timer: Built-in Nano

Construction: Aluminum extrusion and heavy-duty steel, IP40

Operating Temperature: -30°C to +60°C (-22°F to +140°F)

Relative Humidity: 10% - 95%, non-condensing

Vibration: 3 Grms with M.2 (5 to 500Hz, X, Y, Z directions)

Dimensions (W x D x H): 148.6 x 129.8 x 34.6 mm (5.85" x 5.11" x 1.36")

Weight (net/gross): 1 kg (2.20lb)/1.6 kg (3.52lb)

Certifications: CE, FCC Class A

EOS Support: Linux Ubuntu 18.04

Mounting:

Wall mount kit

DIN-rail kit

VESA mount kit
